Model: PXF

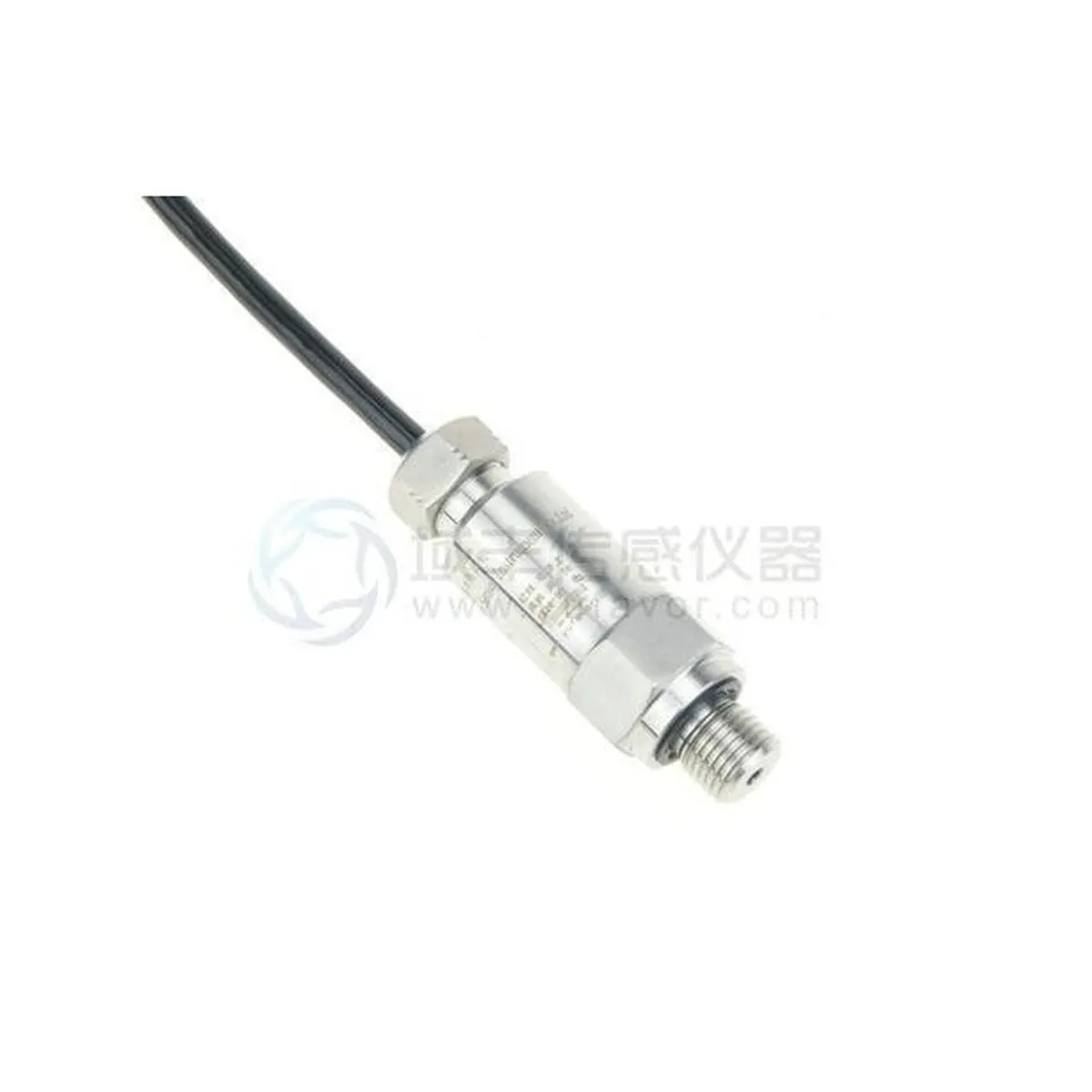

PXF Pressure Transmitters
PXF Pressure Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Accuracy
±1 %FS / ±0.5 %FS / ±0.25 %FS
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 0..6 bar-10 bar-16 bar-25 bar-30 bar-50 bar |
| Measurement / Accuracy | ±1 %FS; ±0.5 %FS; ±0.25 %FS |
| Measurement / Overload limit | 3 x rated pressure |
| Mechanical / Electrical connection | IP68 |
| Environmental / Ingress protection | IP68 |
| Environmental / Ambient temperature | -40..100 °C |

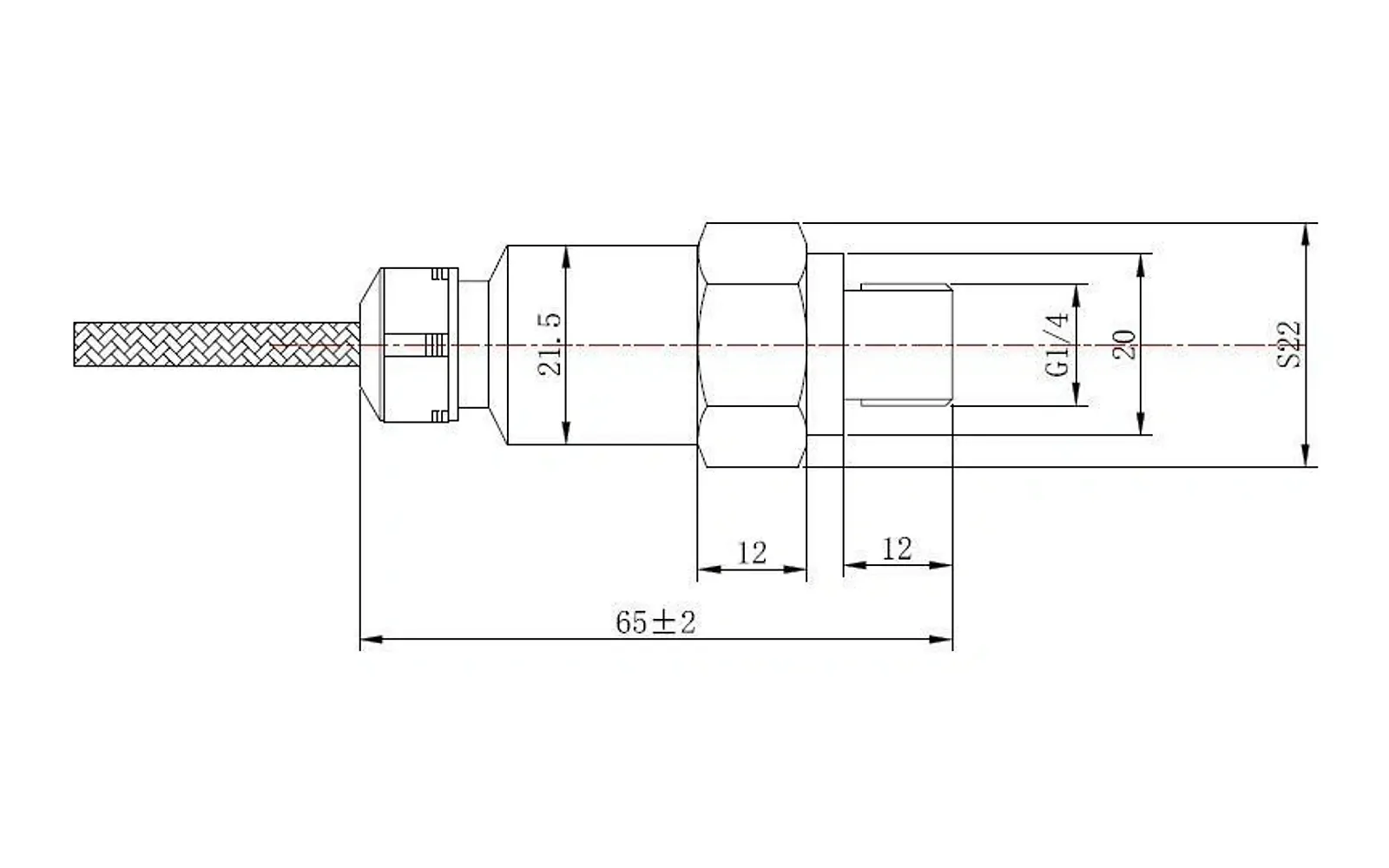

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Accuracy | ±1 %FS / ±0.5 %FS / ±0.25 %FS |
Related products
Standard lead timePressure Transmitter

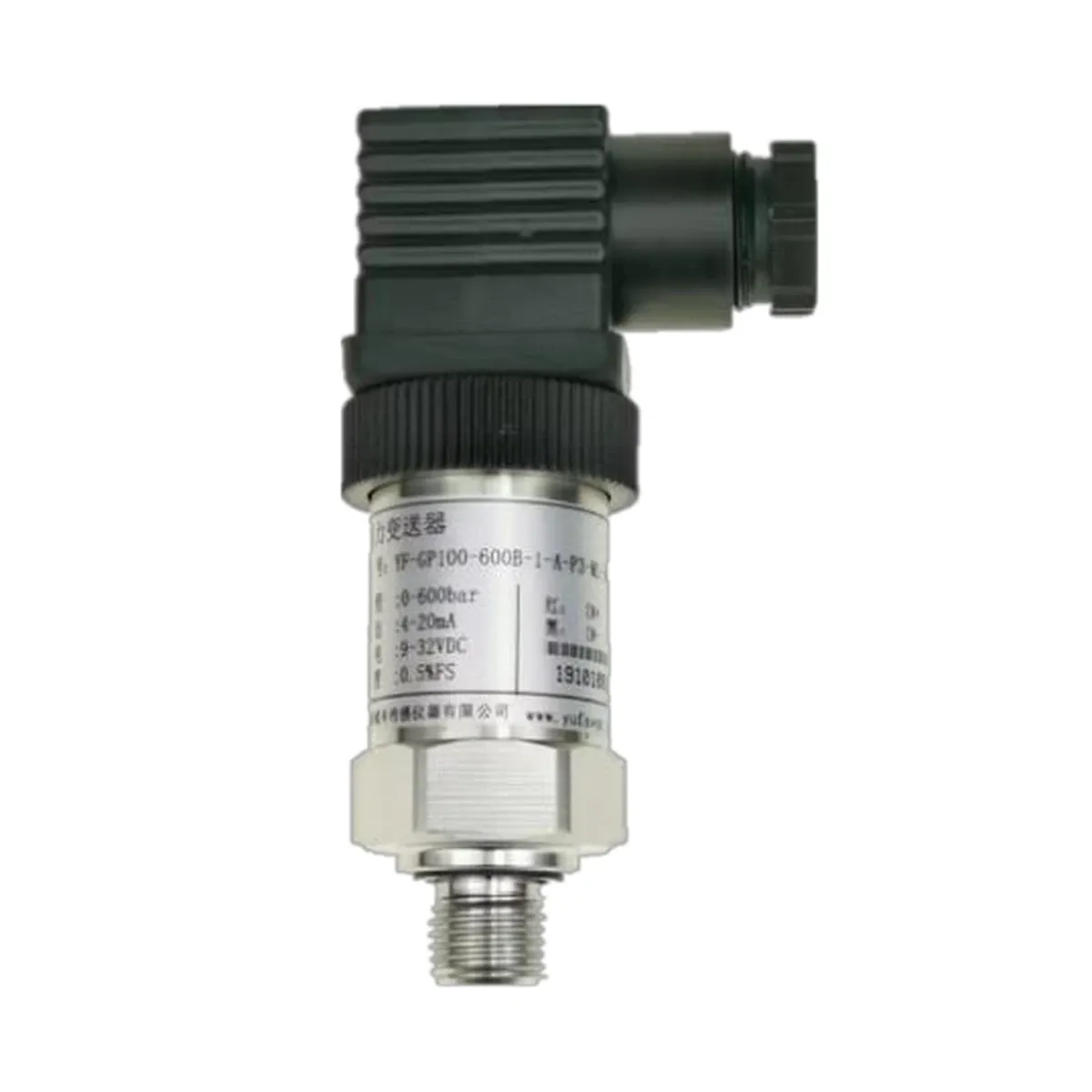

P100 Pressure Transmitter
- Measurement range
- 0–0.1 MPa / -0.1 MPa / 100 MPa
- Output signal
- 0.5–4.5 V / 0–5 V / 0–10 V · +3 options
- Accuracy
- ±1 %FS / ±0.5 %FS / ±0.25 %FS · +2 options
Standard lead timePressure Transmitter

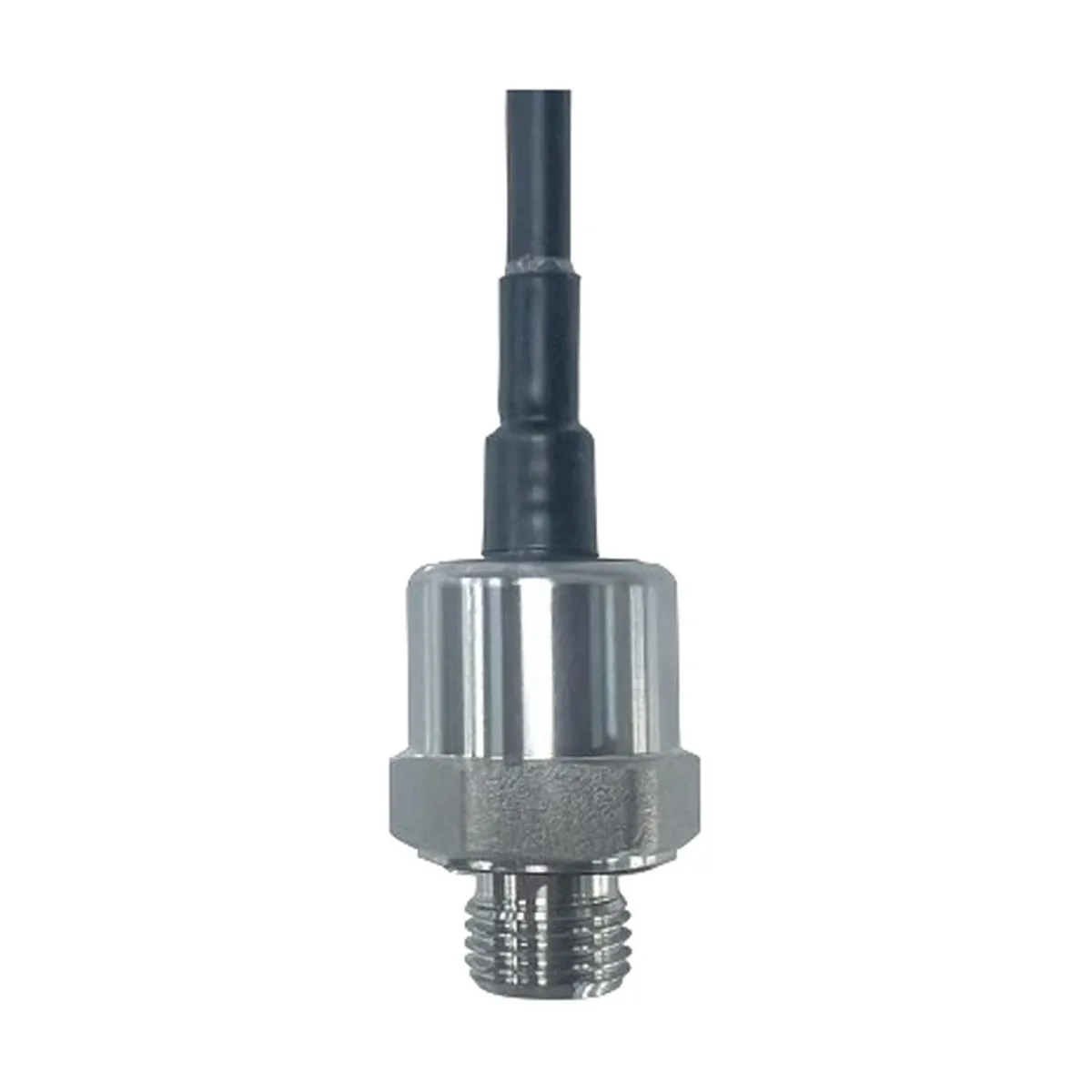

P10C Pressure Transmitter
- Measurement range
- 0–6 bar / 10 bar / 16 bar · +1 options
- Output signal
- 0.5–4.5 V / 0–5 V / 0–10 V · +1 options
- Accuracy
- ±1% / 0.5 %FS
Standard lead timePressure Transmitter

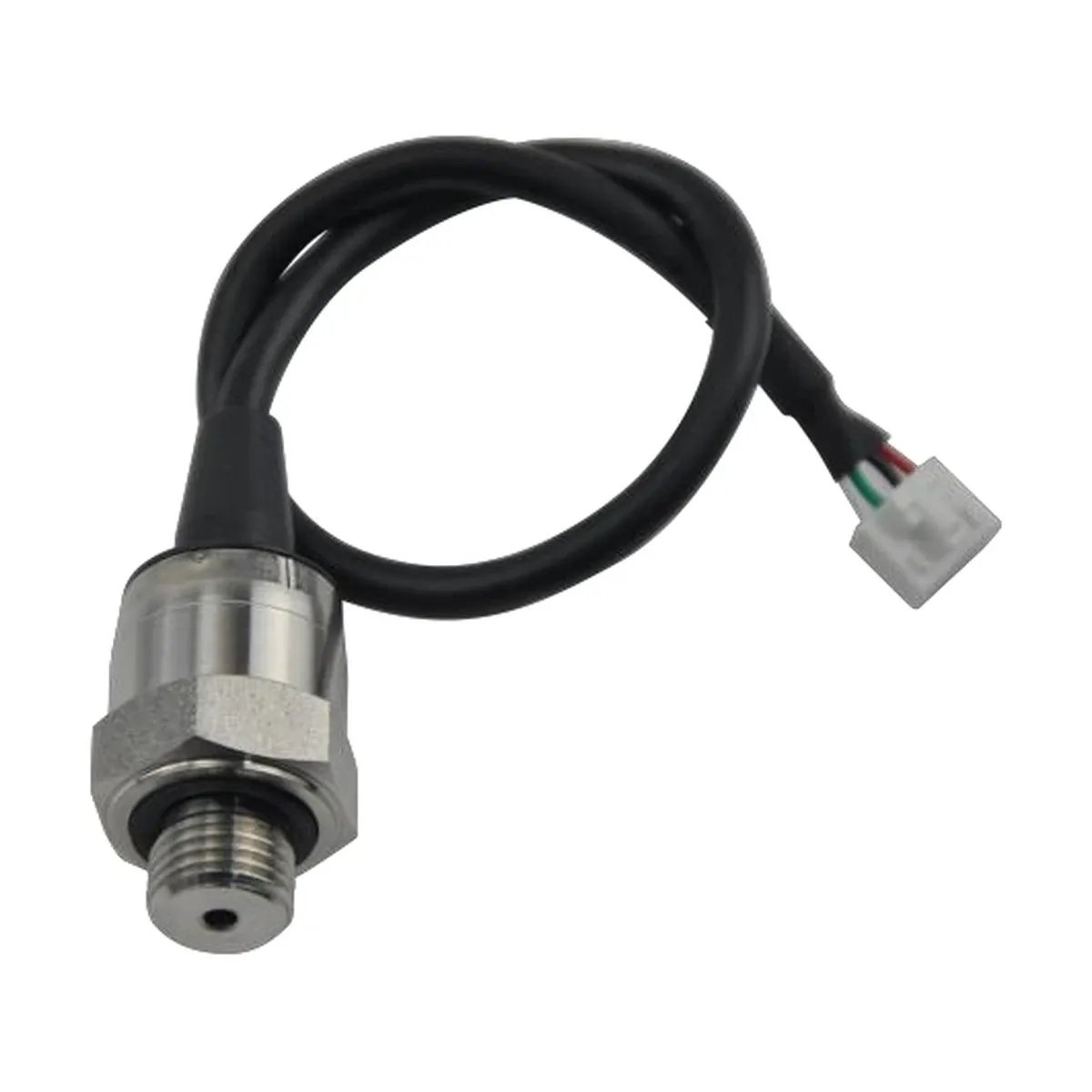

P11 Pressure Transmitter
- Measurement range
- 0–1 MPa / 1.6 MPa / 2 MPa · +2 options
- Output signal
- IIC
- Accuracy
- ±1.5% / ±3%
Standard lead timePressure Transmitter

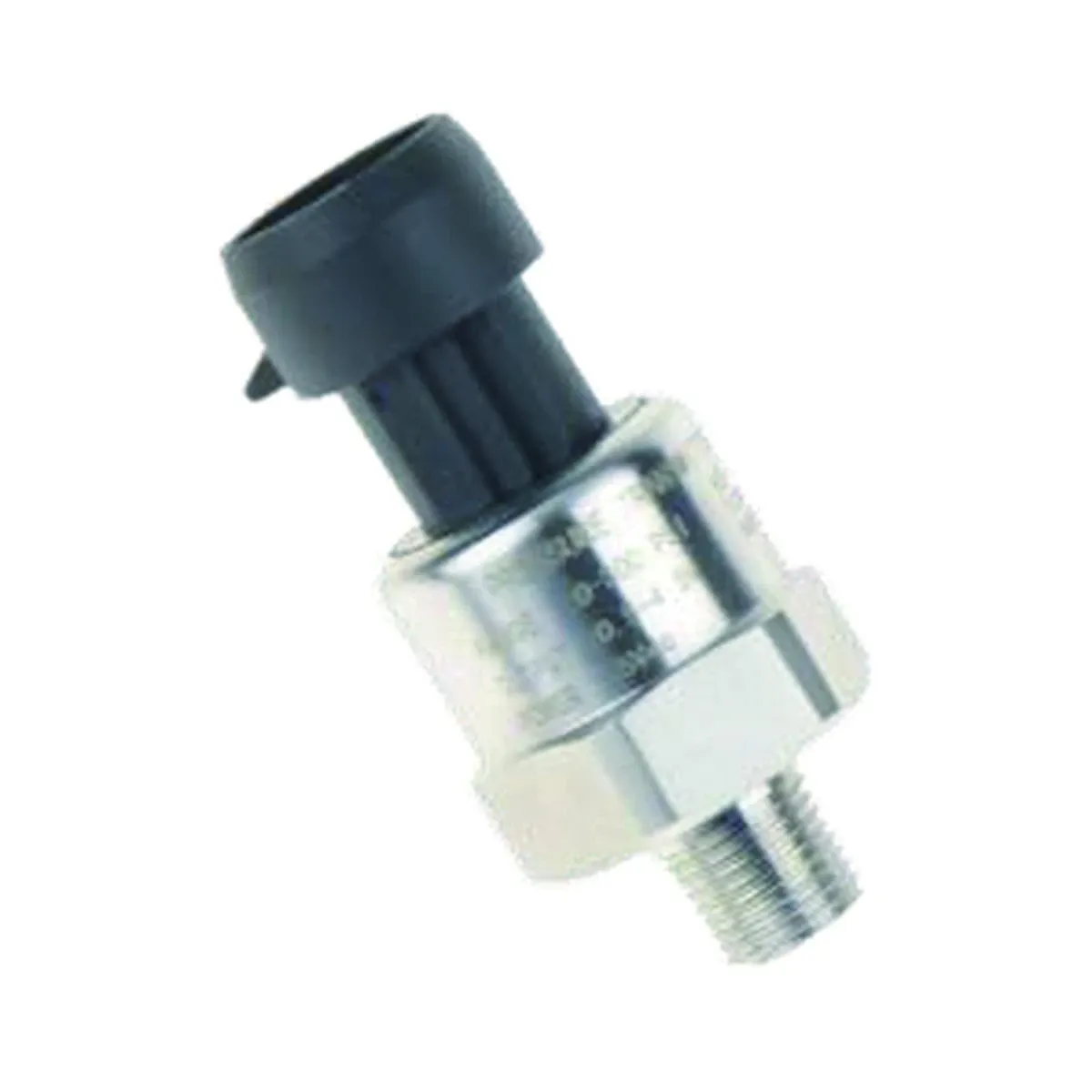

P110 Pressure Transmitter
