Model: P11

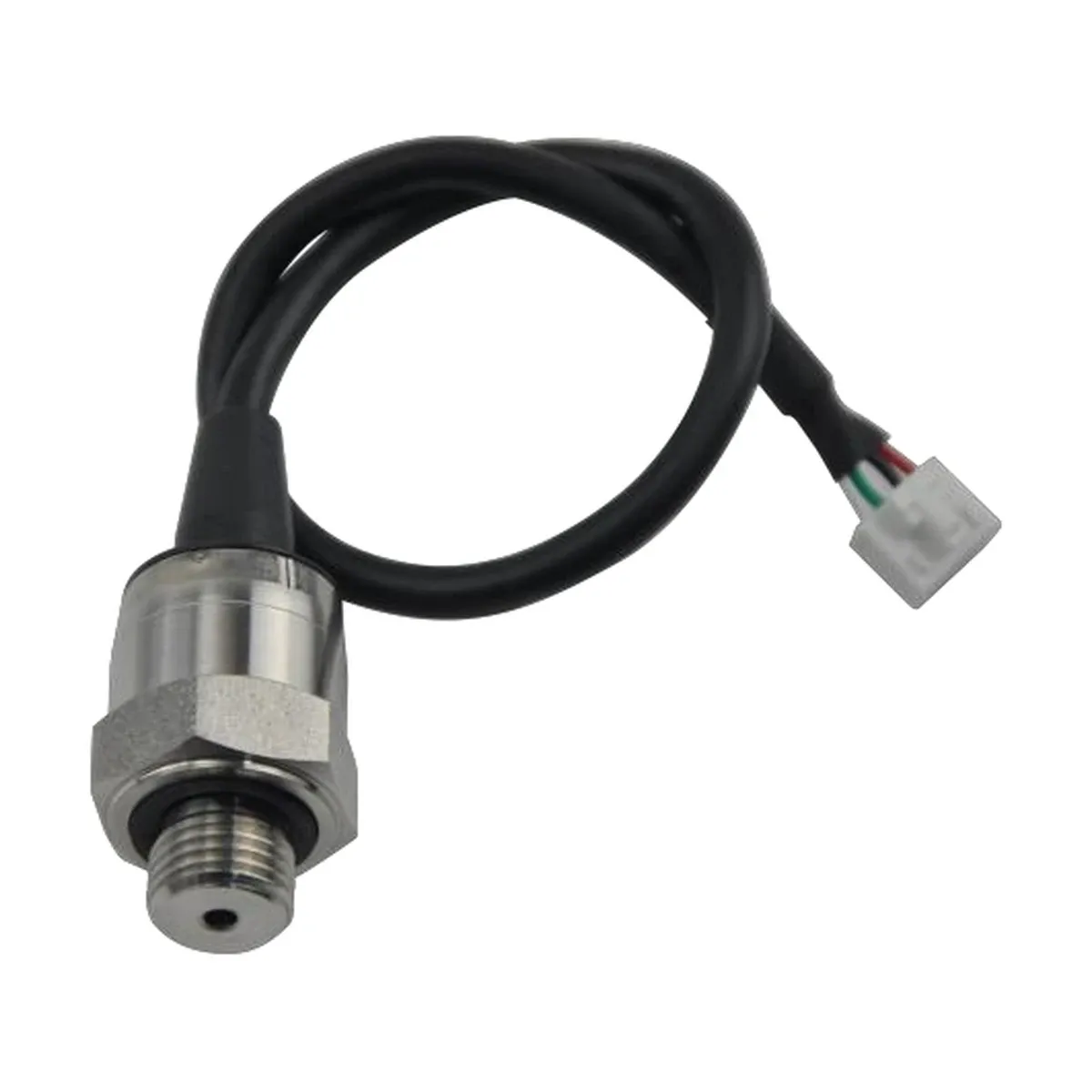

P11 Pressure Transmitters
P11 Pressure Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Output signal
IIC
Accuracy
±1.5% / ±3%
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 0..1 MPa..1.6 MPa..2 MPa ..3 MPa..5 MPa |
| Measurement / Accuracy | ±1.5%F.S(25℃) ±3%F.S(-40~+125℃) |
| Electrical / Output signal | IIC |
| Electrical / Supply voltage | 3..5 VDC |
| Environmental / Ingress protection | IP67 |
| Environmental / Ambient temperature | -40..125 °C |
Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Output signal | IIC |
| Accuracy | ±1.5% / ±3% |
