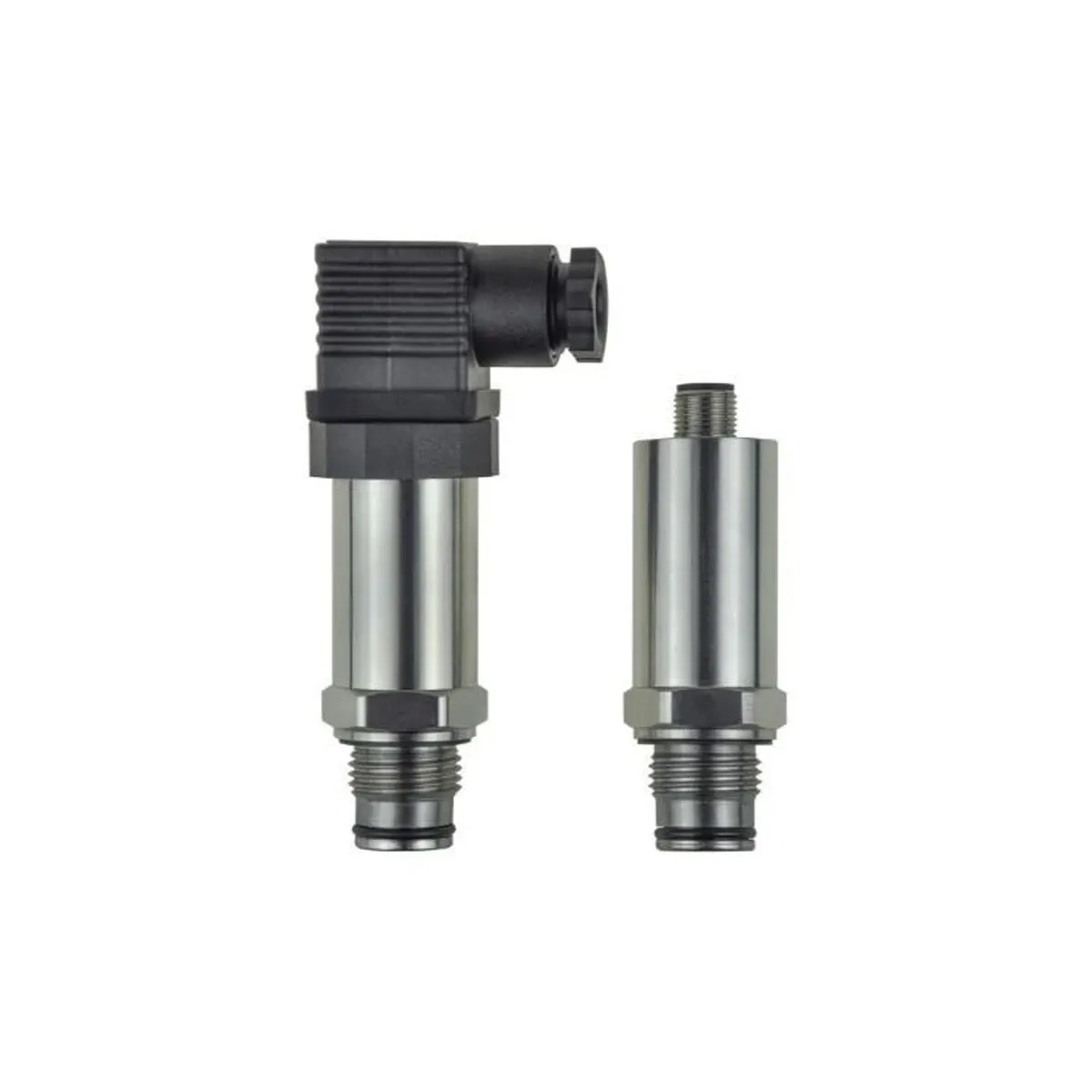

prd_p132 primary image
Model: P132

P132 Level Transmitters

P132 Level Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.

Output signal

0–5 V / 0–10 V / 4–20 mA

Request QuoteView available documents
ParameterValue / Description
Measurement / Measurement range0.1MPa / 40-60MPa
Measurement / Accuracy±0.5 %FS; ±0.25 %FS
Electrical / Output signal0..5 V / 0..10 V / 4..20 mA
Electrical / Supply voltage8..32 VDC / 12..32 V
Mechanical / Process connectionG1/2
Mechanical / Electrical connectionM12*1
Environmental / Ingress protectionIP65 / IP67
Environmental / Ambient temperature-20..100 °C
