Model: P1104E

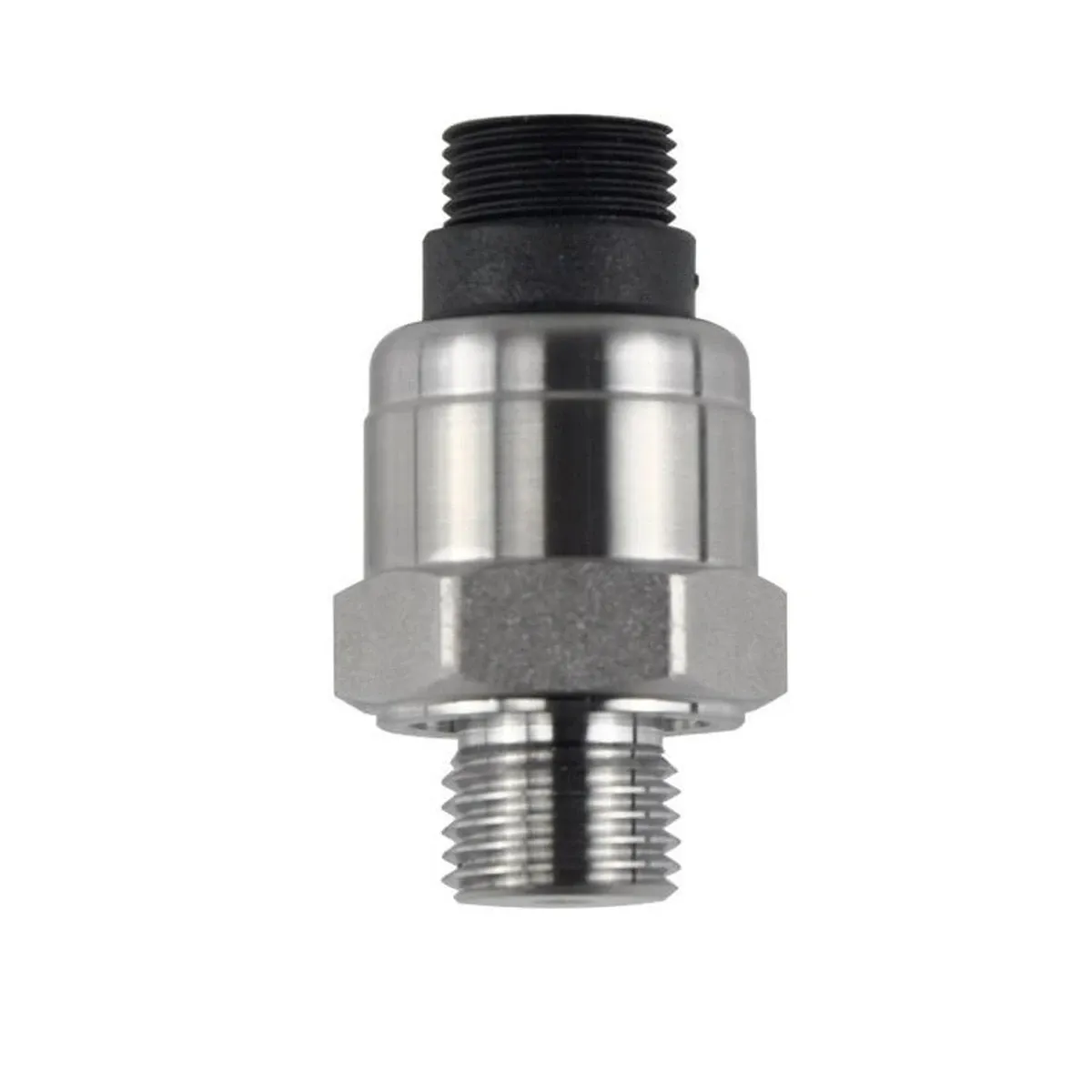

P1104E Wireless Pressure Transmitters
P1104E Wireless Pressure Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Output signal
0.5–4.5 V / 0–5 V / 1–5 V · +3 options
Accuracy
±1 %FS / ±0.5 %FS / ±0.25 %FS
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 0-2bar / 4bar / 6bar / 10bar / 16bar / 25bar / 30bar |
| Measurement / Accuracy | ±1 %FS; ±0.5 %FS; ±0.25 %FS |
| Measurement / Overload limit | 2 x rated pressure |
| Electrical / Output signal | 0.5..4.5 V / 0..5 V / 1..5 V / 0..10 V / 4..20 mA / Other |
| Electrical / Supply voltage | 5 VDC / 9..32 VDC / 12..32 VDC / 3 VDC Other |
| Mechanical / Process connection | G1/4 / R1/4 / Custom |
| Environmental / Ingress protection | IP67 |
| Environmental / Ambient temperature | -40..125 °C |

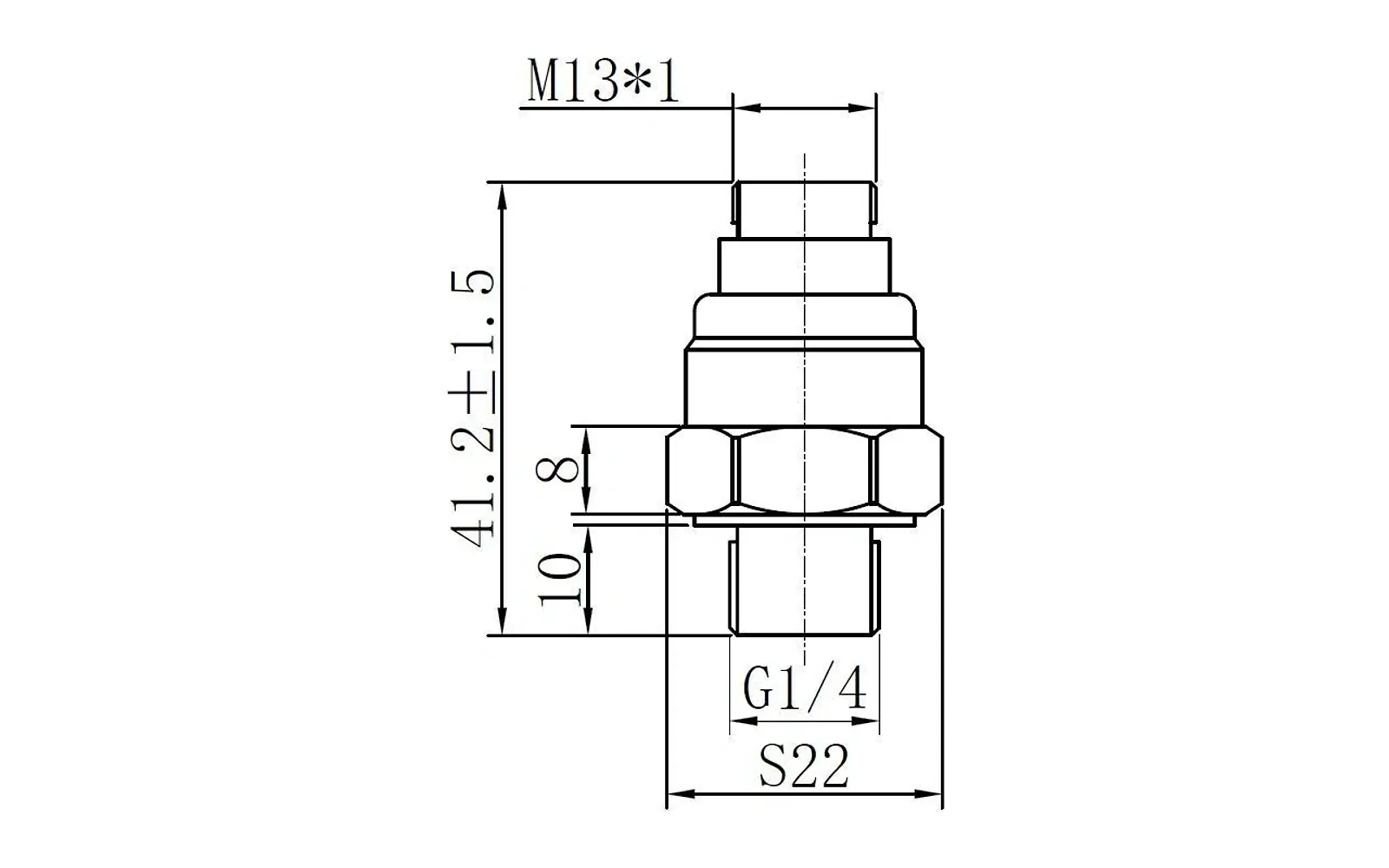

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Output signal | 0.5–4.5 V / 0–5 V / 1–5 V · +3 options |
| Accuracy | ±1 %FS / ±0.5 %FS / ±0.25 %FS |
