Model: H200

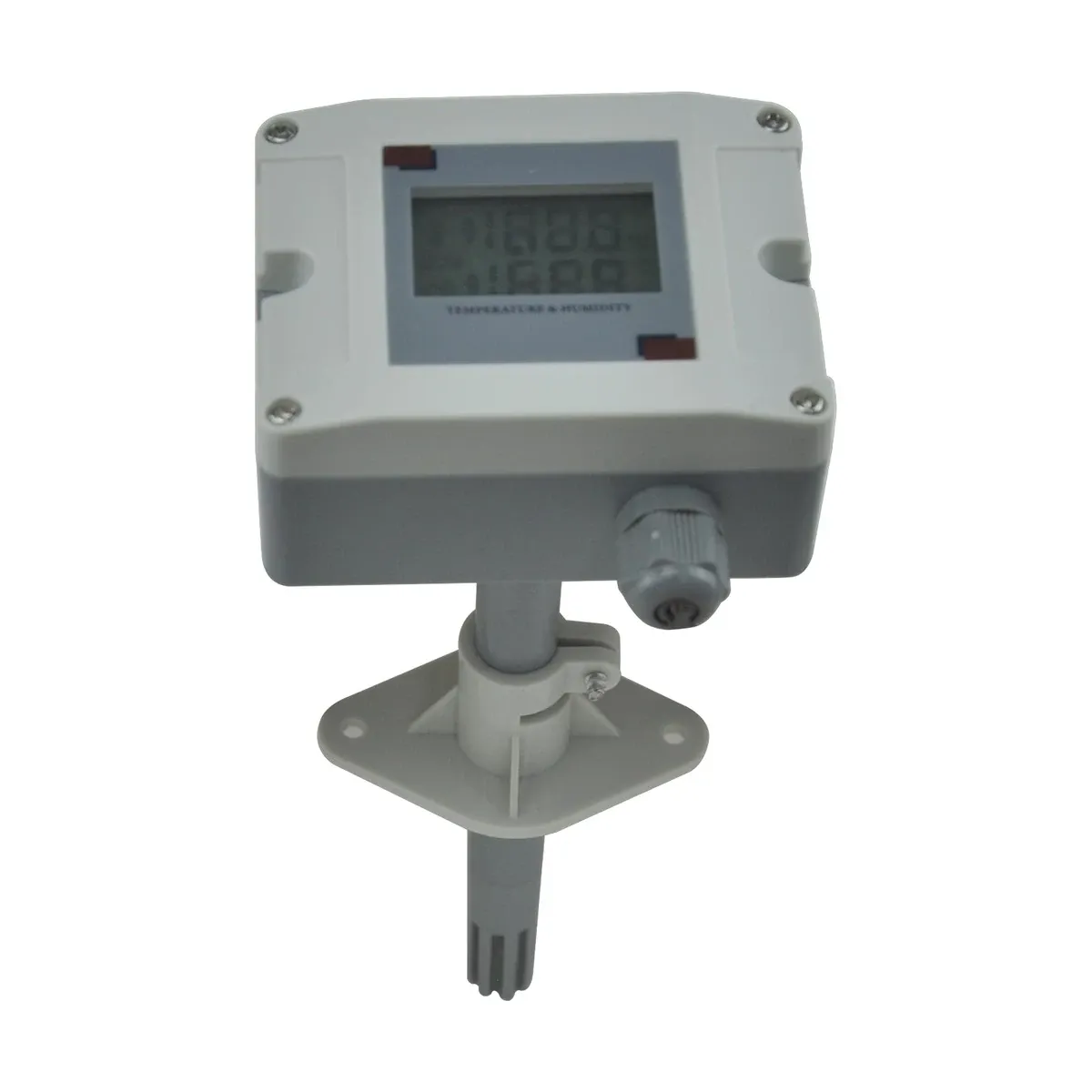

H200 Temperature and Humidity Sensors
H200 Temperature and Humidity Sensors for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Output signal
4–20 mA / RS-485
Accuracy
≤±3 %RH / 20 %RH / 90 %RH
Supply voltage
12–32 VDC · +1 options
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 0%～100%RH |
| Measurement / Measurement range | 0-50℃ / -20-60℃ |
| Measurement / Accuracy | 0.2-0.4℃ |
| Electrical / Output signal | 4..20 mA / RS485 Other |
| Electrical / Supply voltage | 12..32 VDC / Other |
| Environmental / Ingress protection | IP65 / IP40 |

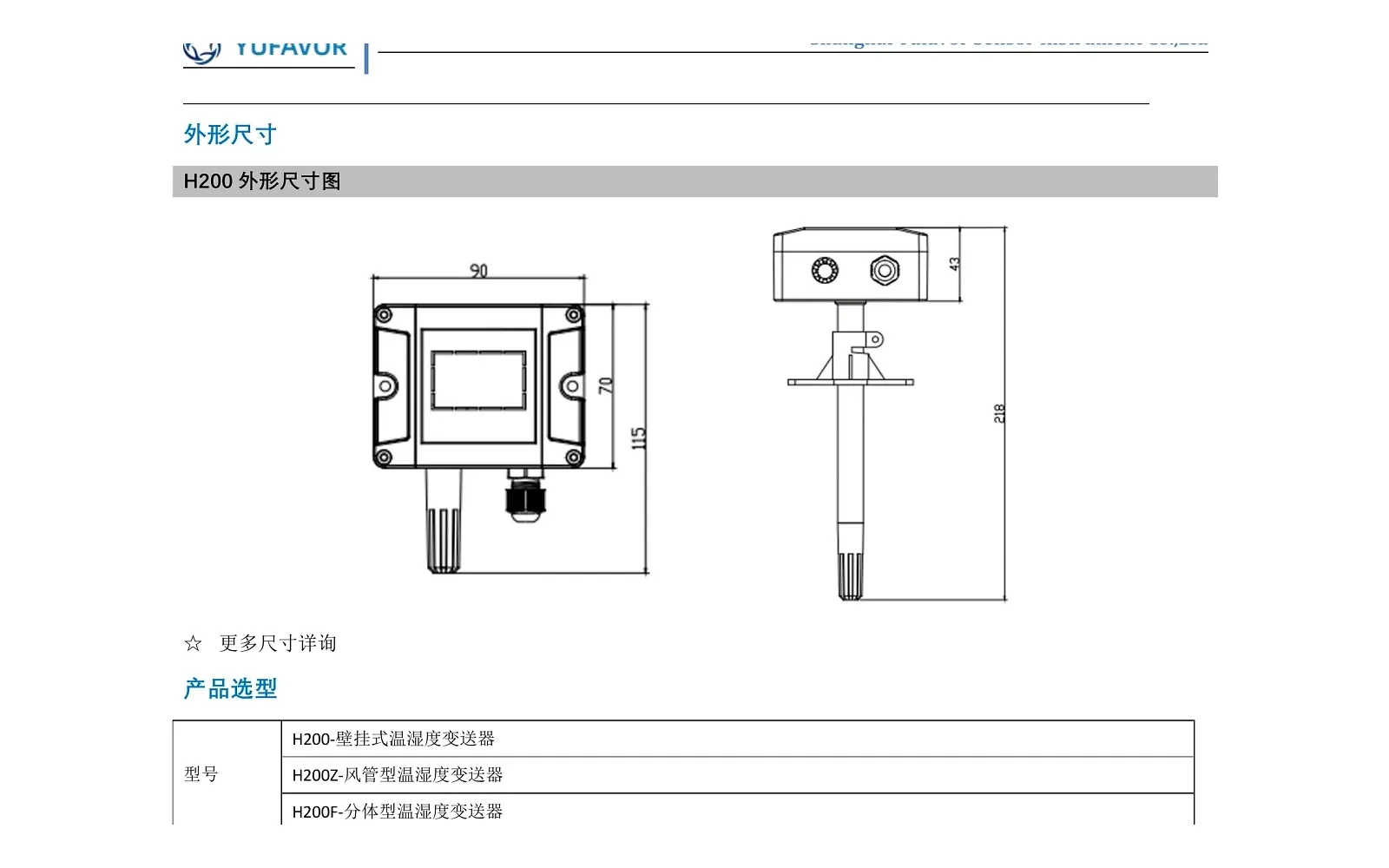

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Output signal | 4–20 mA / RS-485 |
| Accuracy | ≤±3 %RH / 20 %RH / 90 %RH |
| Supply voltage | 12–32 VDC · +1 options |
