Model: P1101

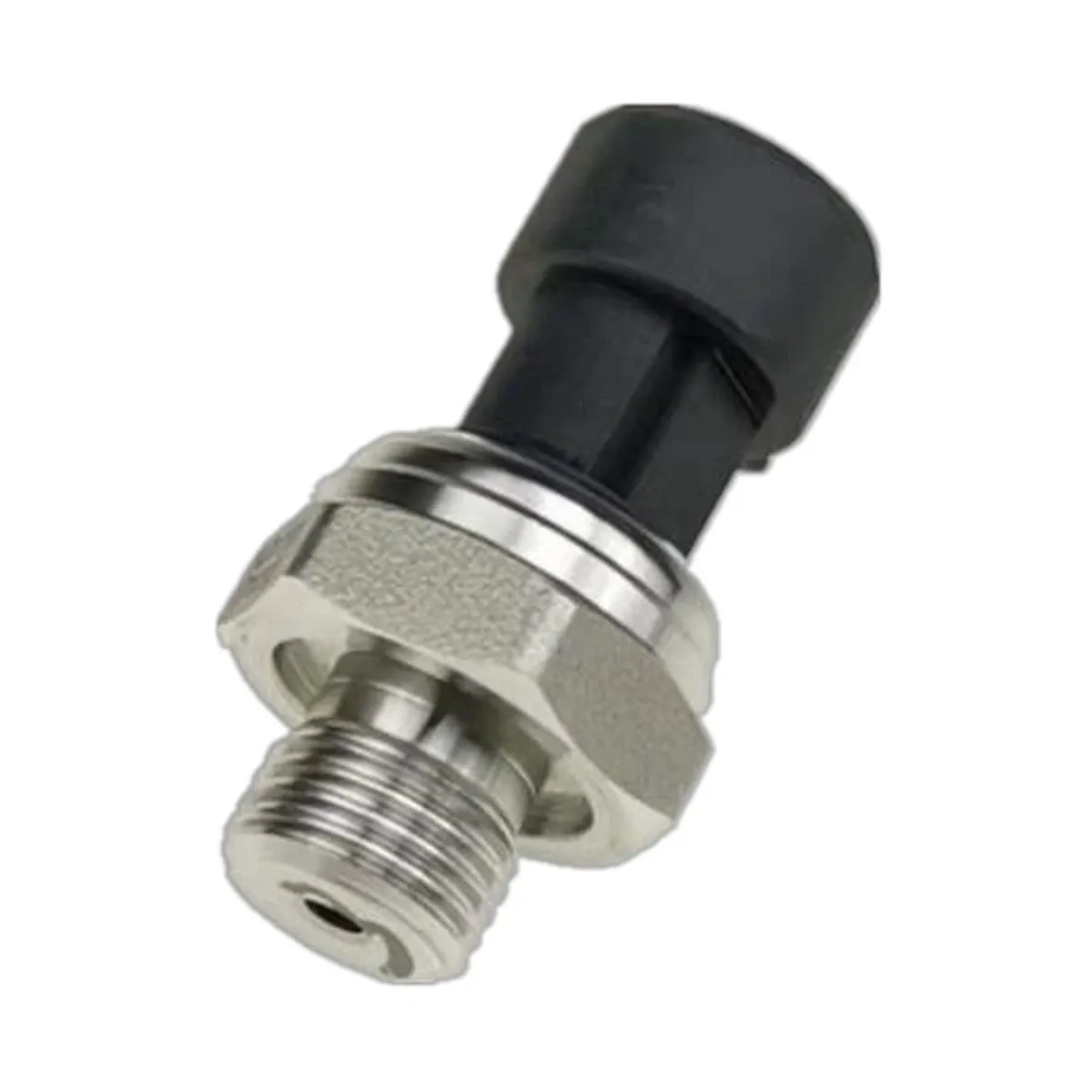

P1101 Smart Pressure Controllers
P1101 Smart Pressure Controllers for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Accuracy
±1 %FS / ±0.5 %FS
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 0-5bar / 10bar / 16bar / 20bar / 25bar |
| Measurement / Accuracy | ±1 %FS; ±0.5 %FS |
| Measurement / Overload limit | 3 x rated pressure |
| Electrical / Output signal | 0.5..4.5 V / 0..5 V / 0..10 V / 4..20 mA / Other |
| Electrical / Supply voltage | 5 VDC / 8..32 VDC / 12..32 VDC / 3.3 V / Other |
| Mechanical / Process connection | G1/4 / G1/2 / G3/8 |
| Environmental / Ingress protection | IP65 |
| Environmental / Ambient temperature | -40..125 °C |

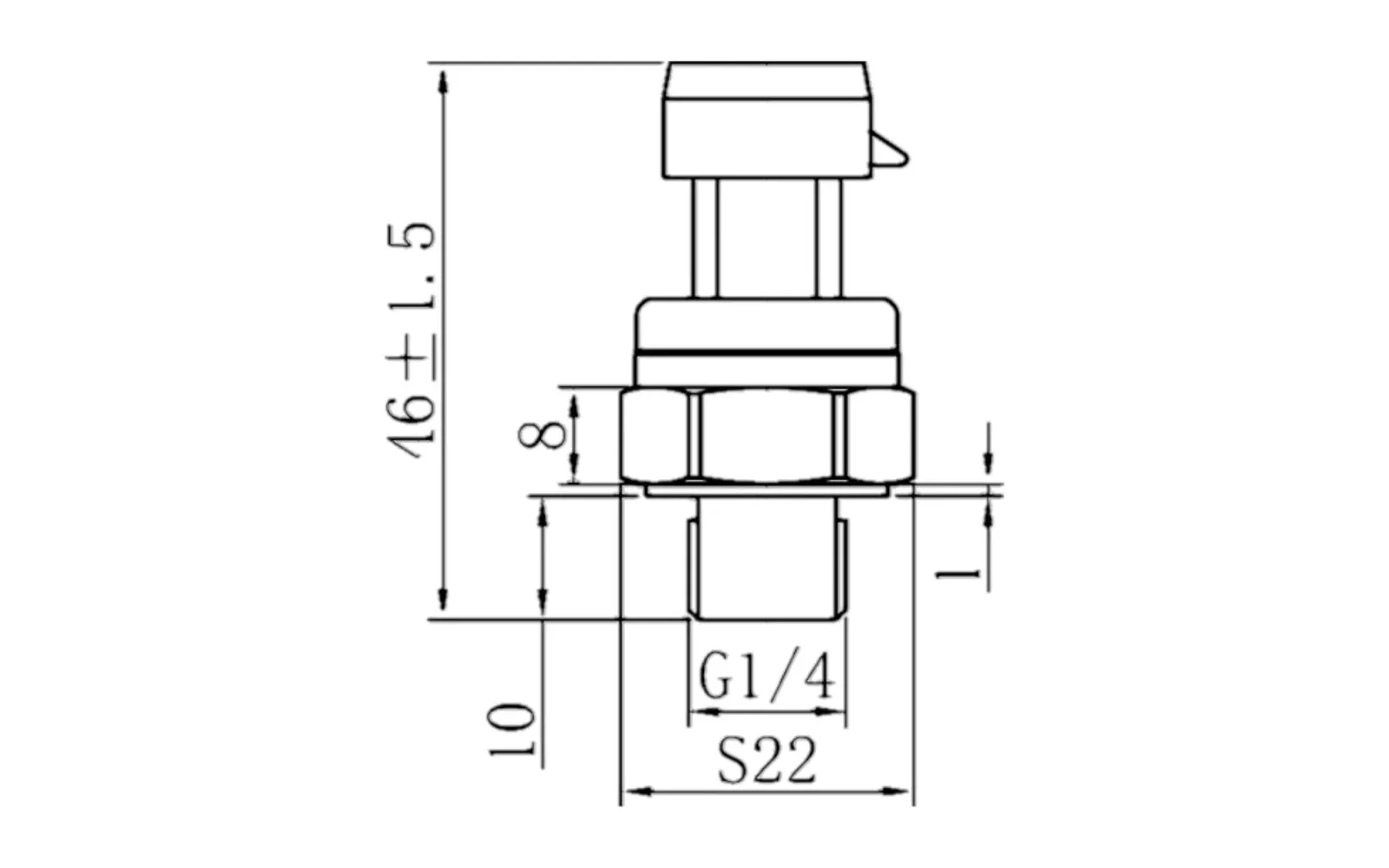

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Accuracy | ±1 %FS / ±0.5 %FS |
