Model: P31
P31 Pressure Transmitters
P31 Pressure Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Output signal
0.5–4.5 VDC / 0.33–2.97 VDC / IIC
Accuracy
±1%
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 0 ~ 10 bar |
| Measurement / Accuracy | ±1%F.S(25℃) |
| Measurement / Overload limit | 30 bar |
| Electrical / Output signal | 0.5..4.5 Vdc、0.33..2.97 Vdc、IIC |
| Electrical / Supply voltage | 5 Vdc、3.3 Vdc |
| Environmental / Ingress protection | IP67 |
| Environmental / Compatible media | Non-corrosivegas |
| Environmental / Ambient temperature | 1 °C..85 °C |

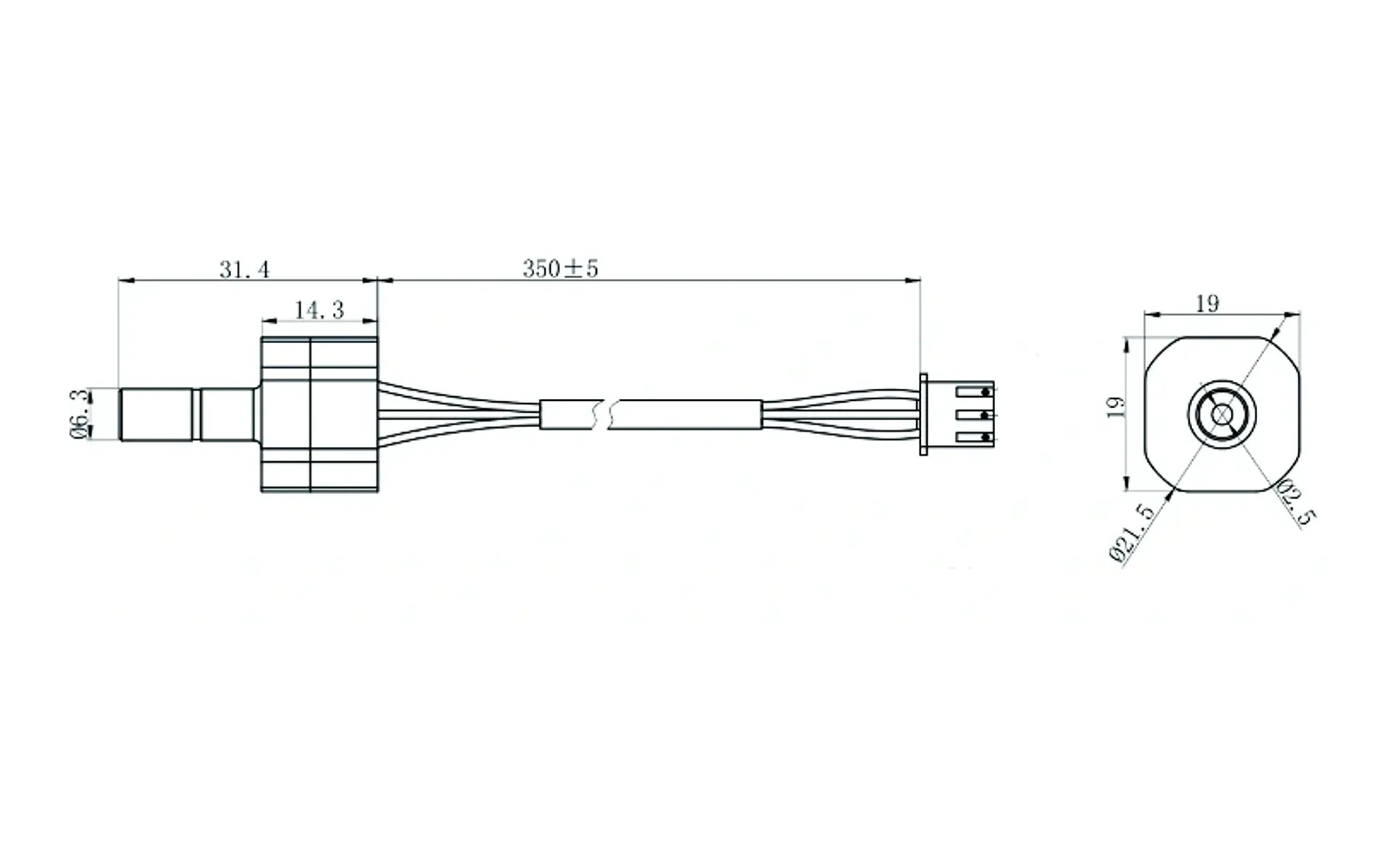

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Output signal | 0.5–4.5 VDC / 0.33–2.97 VDC / IIC |
| Accuracy | ±1% |
