Model: P170

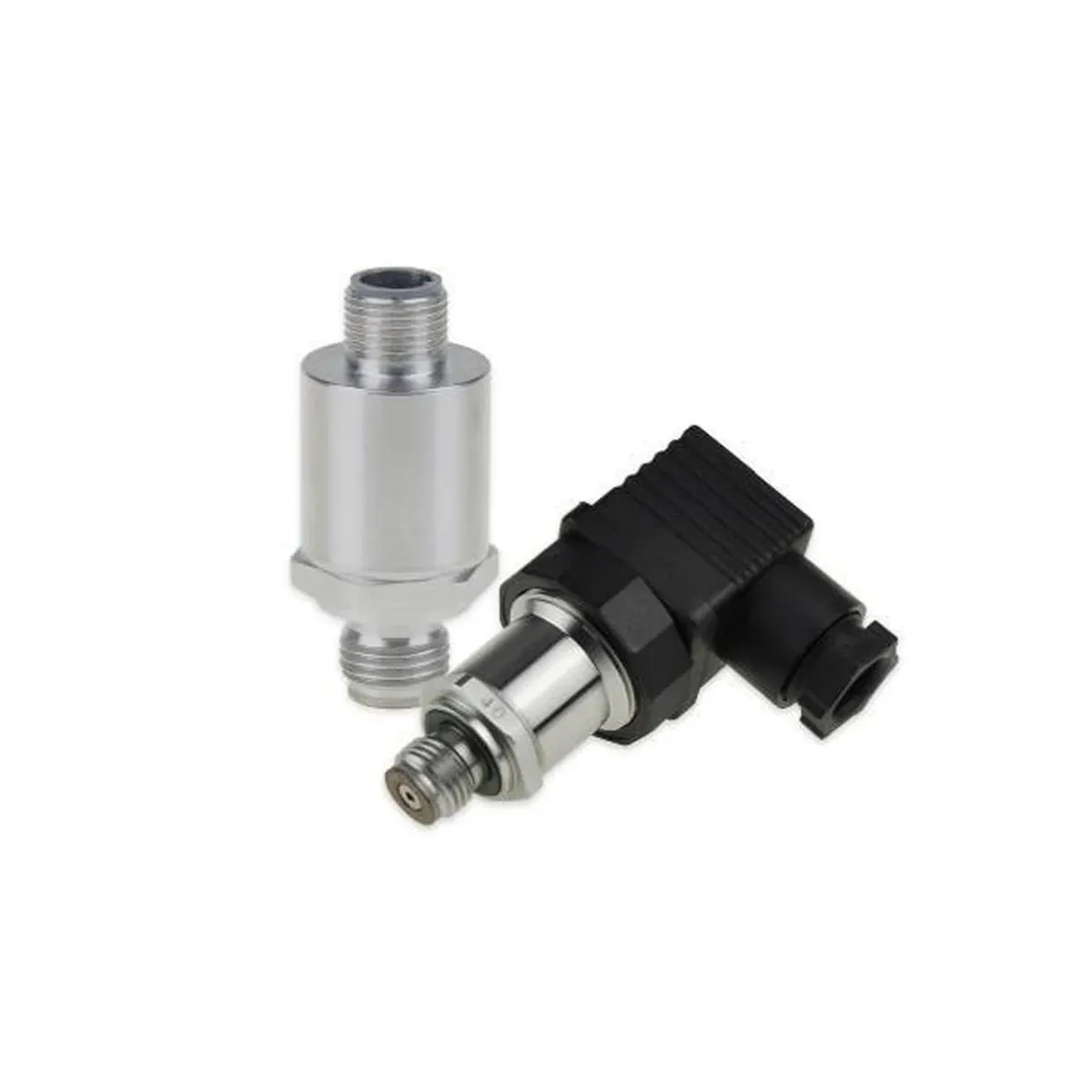

P170 Pressure Transmitters
P170 Pressure Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Output signal
0.5–4.5 V / 0–5 V / 0–10 V · +2 options
Accuracy
±1 %FS / ±0.5 %FS / ±0.25 %FS
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 400-600bar |
| Measurement / Accuracy | ±1 %FS; ±0.5 %FS; ±0.25 %FS |
| Measurement / Overload limit | 2 x rated pressure |
| Electrical / Output signal | 0.5..4.5 V / 0..5 V / 0..10 V / 4..20 mA / Other |
| Electrical / Supply voltage | 5 VDC / 8..32 VDC / 12..32 VDC / Other |
| Mechanical / Process connection | G1/4 / Custom |
| Mechanical / Electrical connection | M12*1 |
| Environmental / Ingress protection | IP65 / IP67 / IP68 |

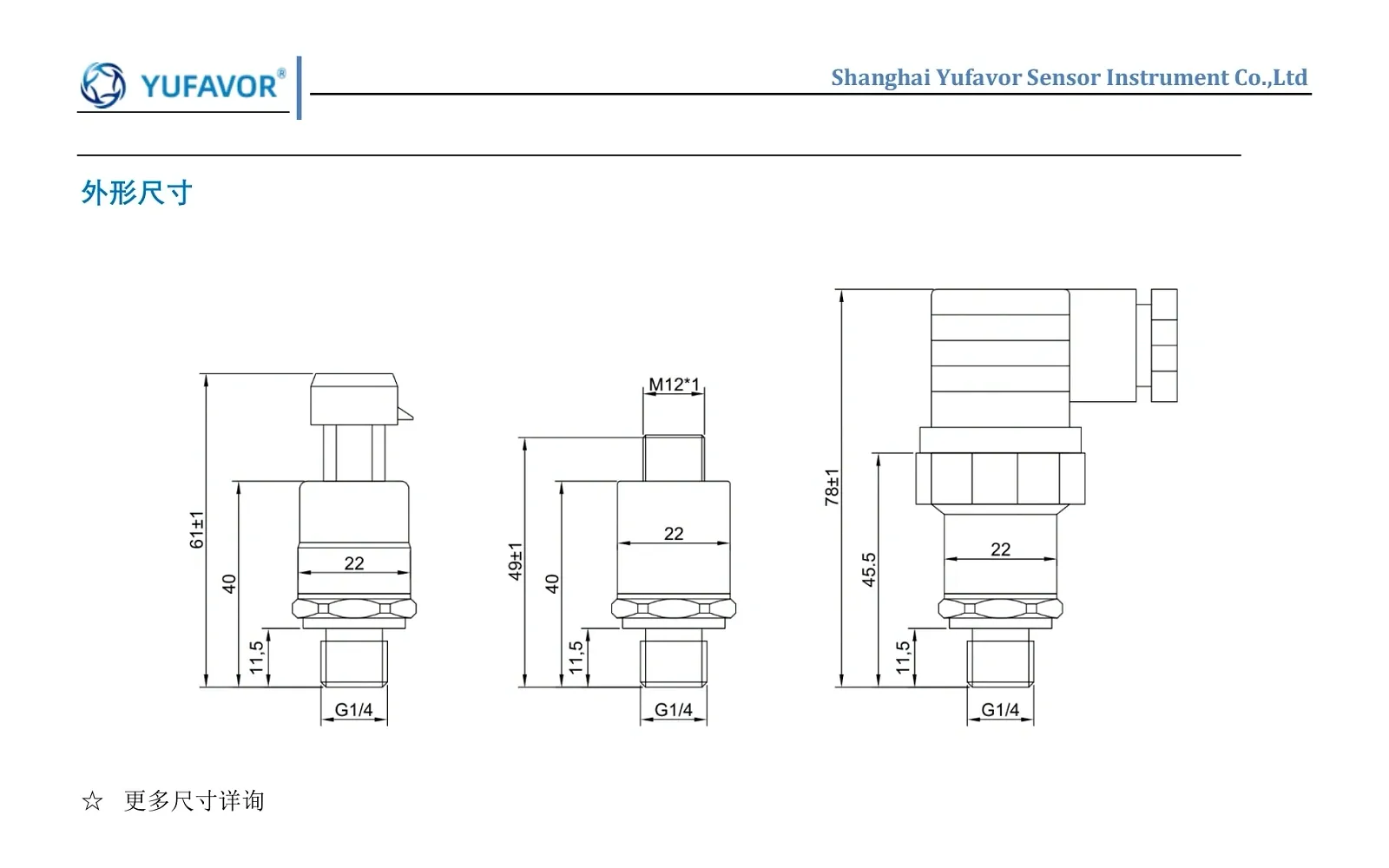

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Output signal | 0.5–4.5 V / 0–5 V / 0–10 V · +2 options |
| Accuracy | ±1 %FS / ±0.5 %FS / ±0.25 %FS |
