Model: P1105
P1105 Pressure Transmitters
P1105 Pressure Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Output signal
0.5–4.5 V / 0.5–2.5 V / 0.5–3.5 V
Accuracy
±1.5 %FS / ±2.5 %FS
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 0..4 bar..6 bar..10 bar..16 bar |
| Measurement / Accuracy | ±1.5 %FS@0..40℃； ±2.5 %FS@40..100℃ |
| Electrical / Supply voltage | 5 VDC / 8..32 VDC |
| Mechanical / Process connection | G1/4 / G3/8 |
| Environmental / Ingress protection | IP65 |
| Environmental / Ambient temperature | 0..100 °C |

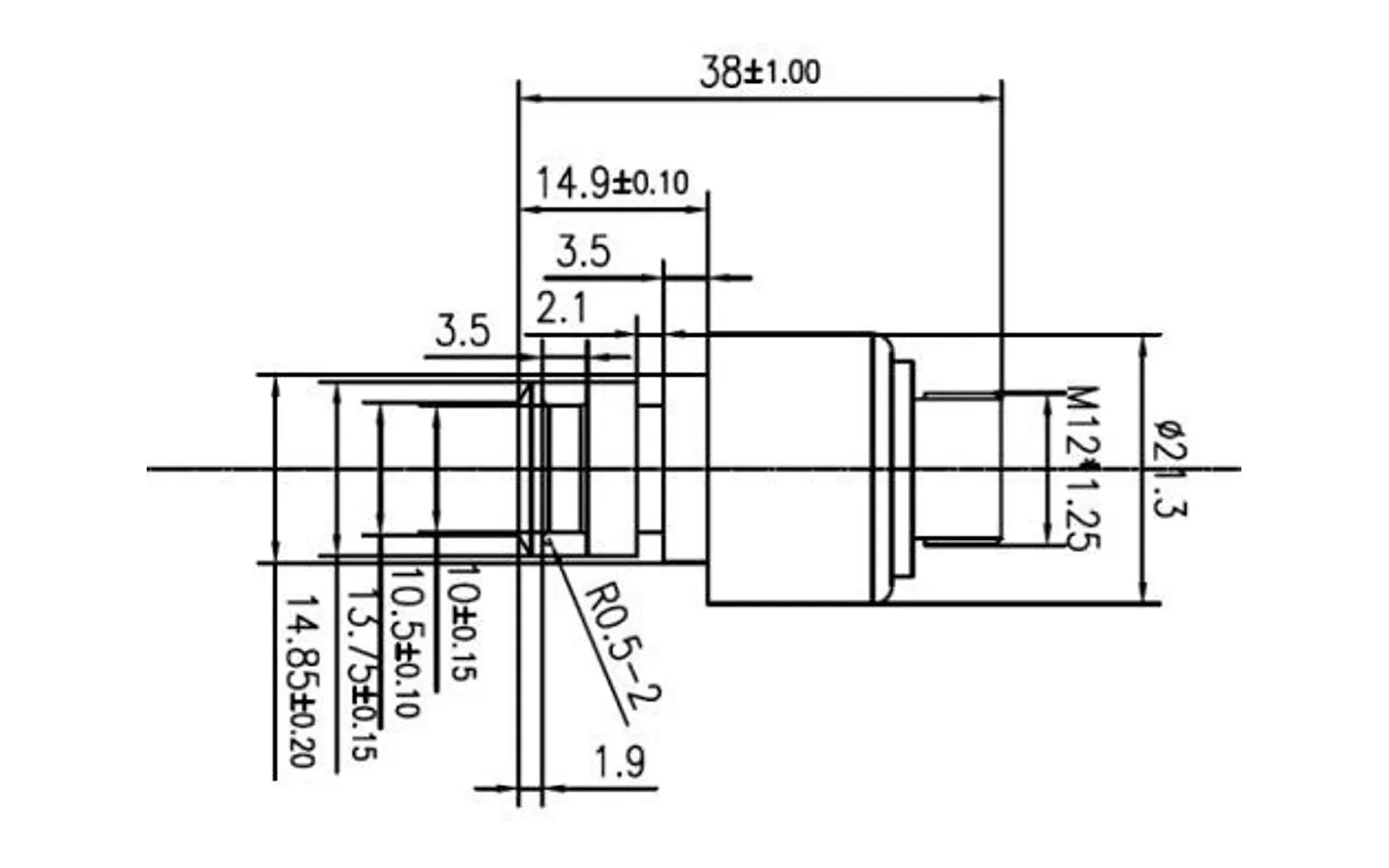

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Output signal | 0.5–4.5 V / 0.5–2.5 V / 0.5–3.5 V |
| Accuracy | ±1.5 %FS / ±2.5 %FS |
