Model: P200
P200 Level Transmitters
P200 Level Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Output signal
0.5–4.5 V / 0–5 V / 0–10 V · +3 options
Supply voltage
5 VDC / 8–32 VDC / 12–32 VDC · +1 options
| Parameter | Value / Description |
|---|---|
| Measurement / Accuracy | ±1 %FS; ±0.5 %FS; ±0.25 %FS; ±0.15 %FS; ±0.1 %FS |
| Measurement / Overload limit | 2 x rated pressure |
| Electrical / Output signal | 0.5..4.5 V / 0..5 V / 0..10 V / 4..20 mA / RS485 I2C |
| Electrical / Supply voltage | 5 VDC / 8..32 VDC / 12..32 VDC / 3.3 V |
| Mechanical / Process connection | G1/4 |
| Mechanical / Electrical connection | IP68 |
| Environmental / Ingress protection | IP68 |
| Environmental / Ambient temperature | -20..100 °C |

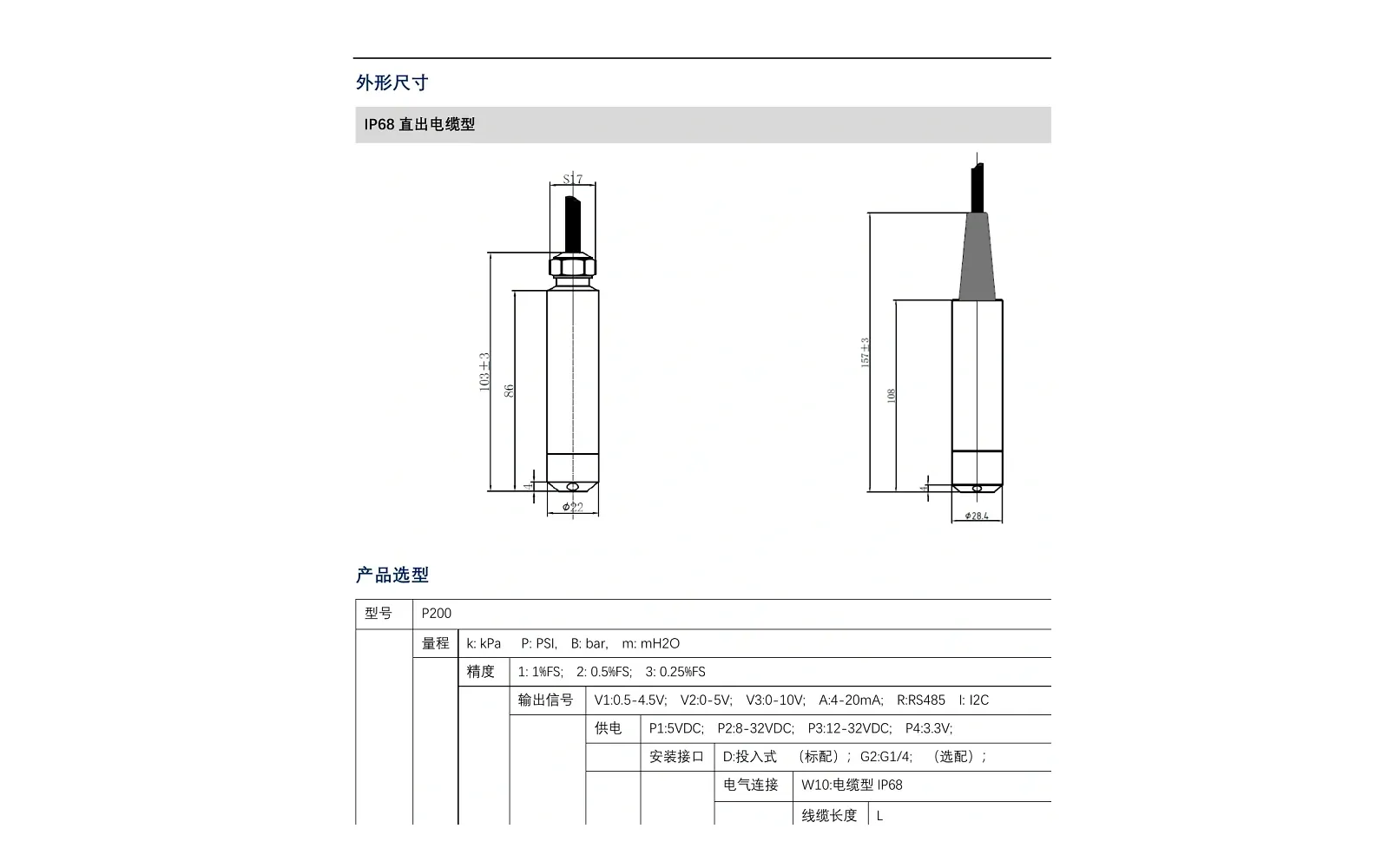

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Output signal | 0.5–4.5 V / 0–5 V / 0–10 V · +3 options |
| Supply voltage | 5 VDC / 8–32 VDC / 12–32 VDC · +1 options |
