Model: P301

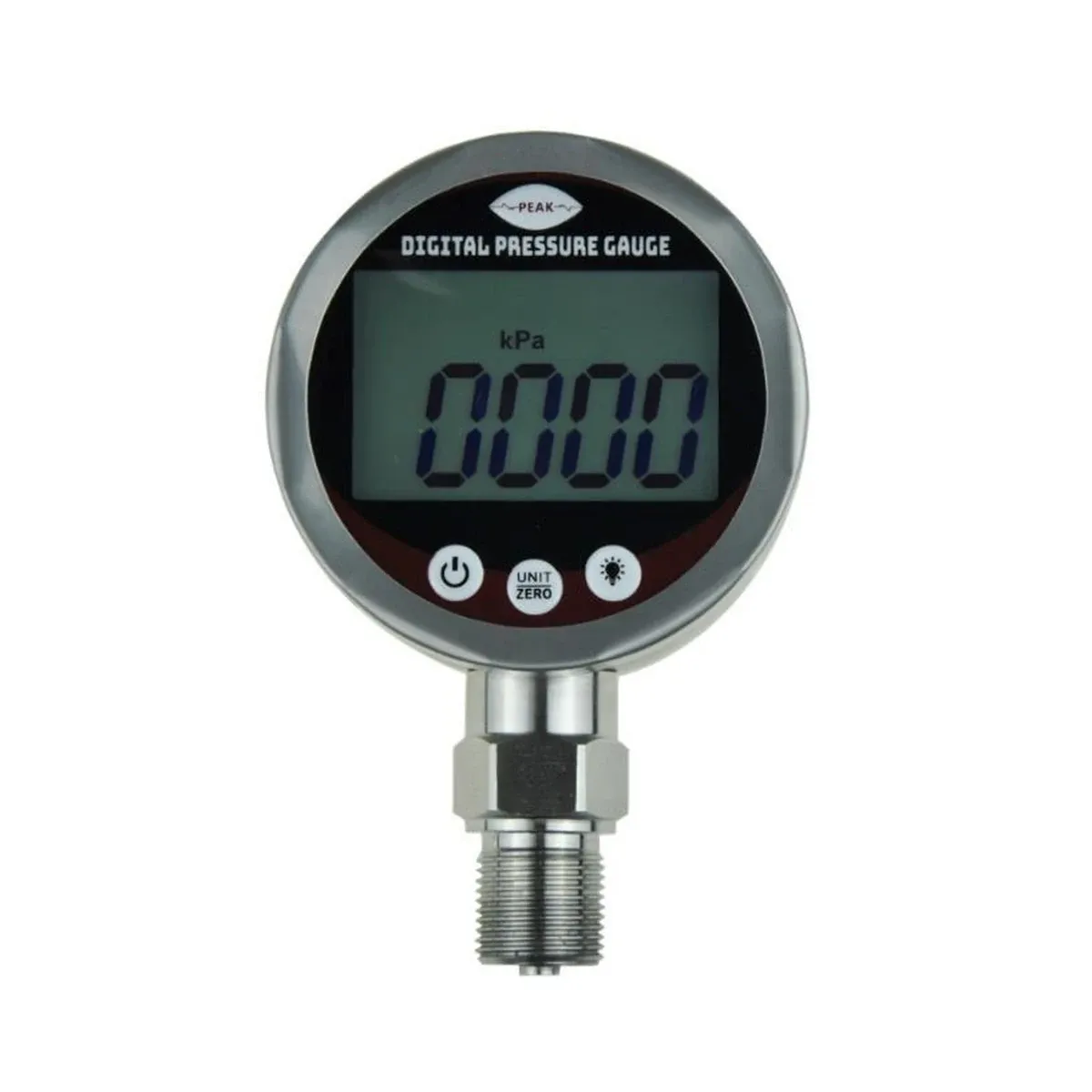

P301 Digital Pressure Gauges
P301 Digital Pressure Gauges for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Accuracy
±1 %FS / ±0.5 %FS / ±0.2 %FS
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 100kPa / 1MPa / 40-60MPa |
| Measurement / Accuracy | ±1 %FS; ±0.5 %FS; ±0.2 %FS |
| Measurement / Overload limit | 2 x rated pressure |
| Mechanical / Process connection | G1/4 、 G1/2、 NPT1/4、 NPT1/2、 M20*1.5 |

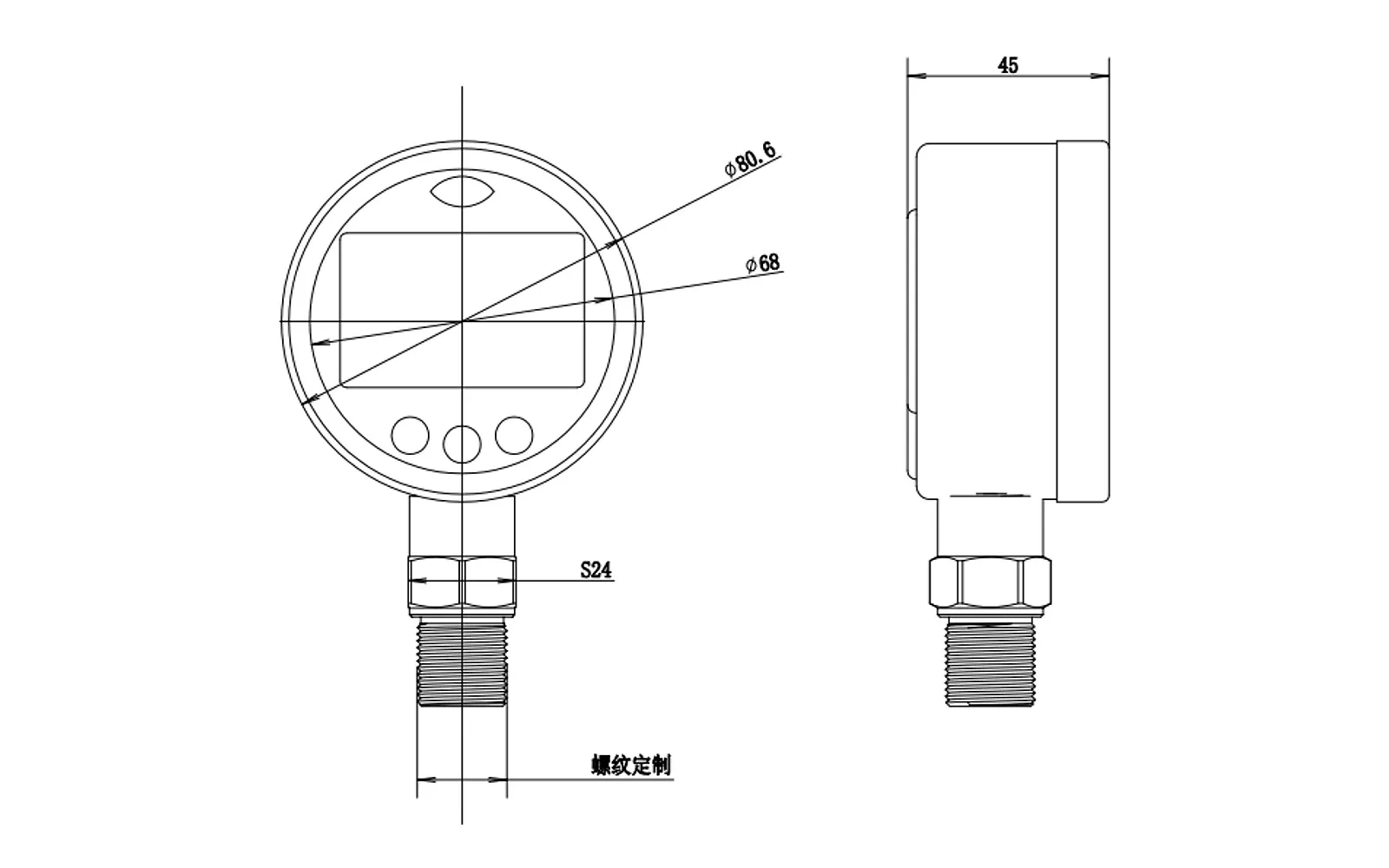

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Accuracy | ±1 %FS / ±0.5 %FS / ±0.2 %FS |
