Model: P101

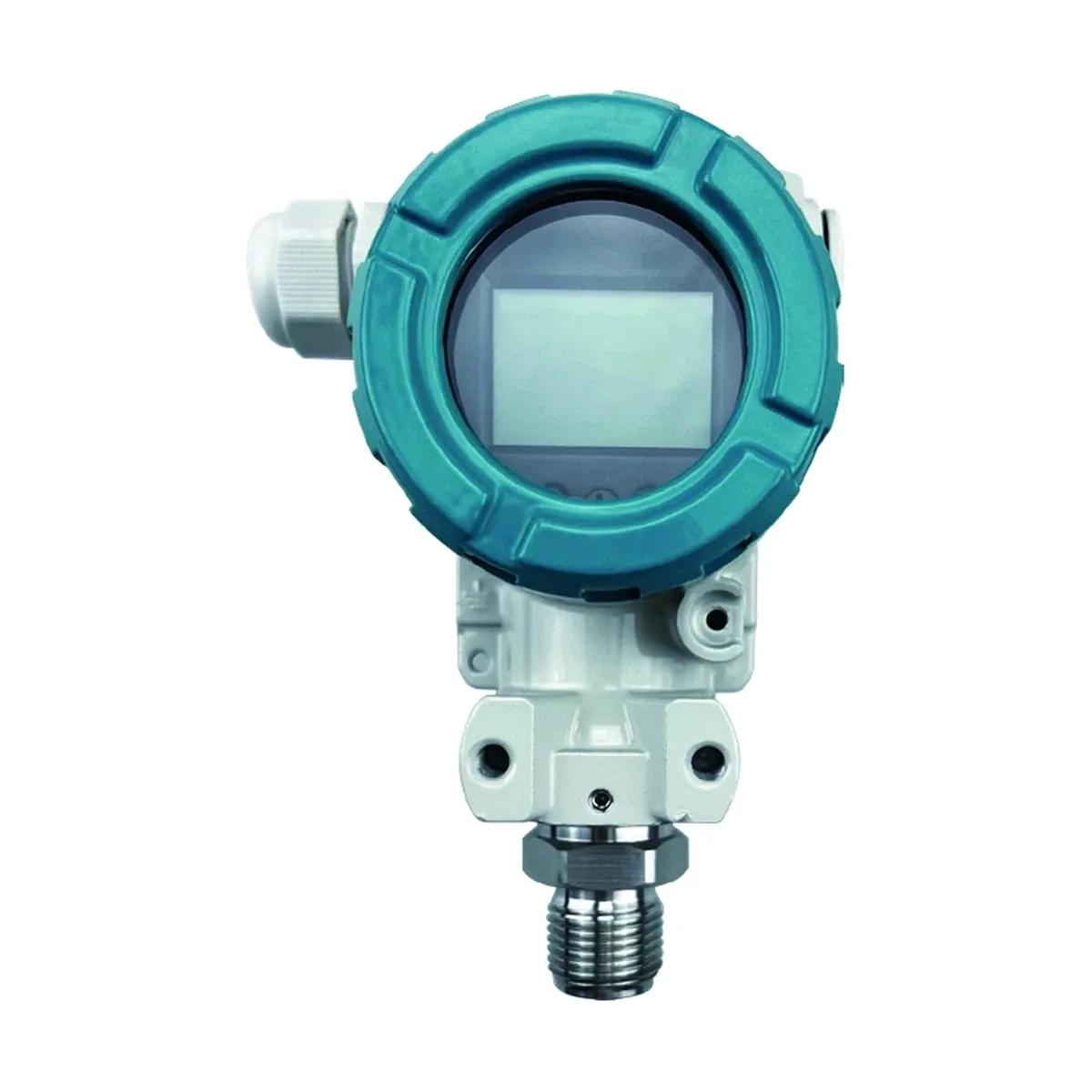

P101 Digital Pressure Gauges
P101 Digital Pressure Gauges for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Accuracy
±0.5 %FS / ±0.25 %FS / ±0.15 %FS
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 100kpa / 0-5kPa / 100MPa |
| Measurement / Accuracy | ±0.5 %FS; ±0.25 %FS; ±0.15 %FS |
| Measurement / Overload limit | 2 x rated pressure |
| Electrical / Output signal | 4-20mA / RS-485 |
| Environmental / Ingress protection | IP65 / IP67 / IP68 |
| Environmental / Ambient temperature | - 40..100 °C |

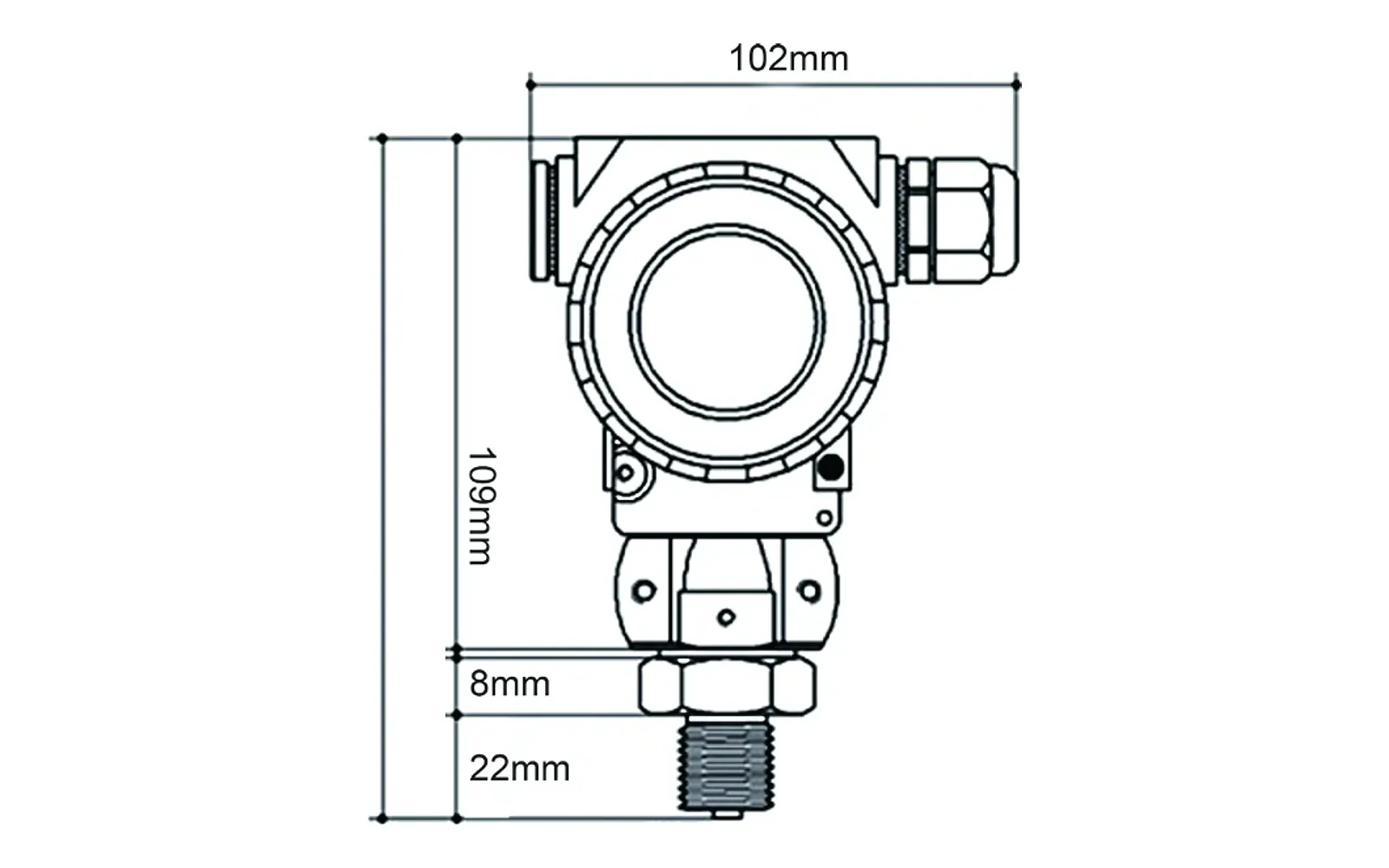

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Accuracy | ±0.5 %FS / ±0.25 %FS / ±0.15 %FS |
