Model: P410

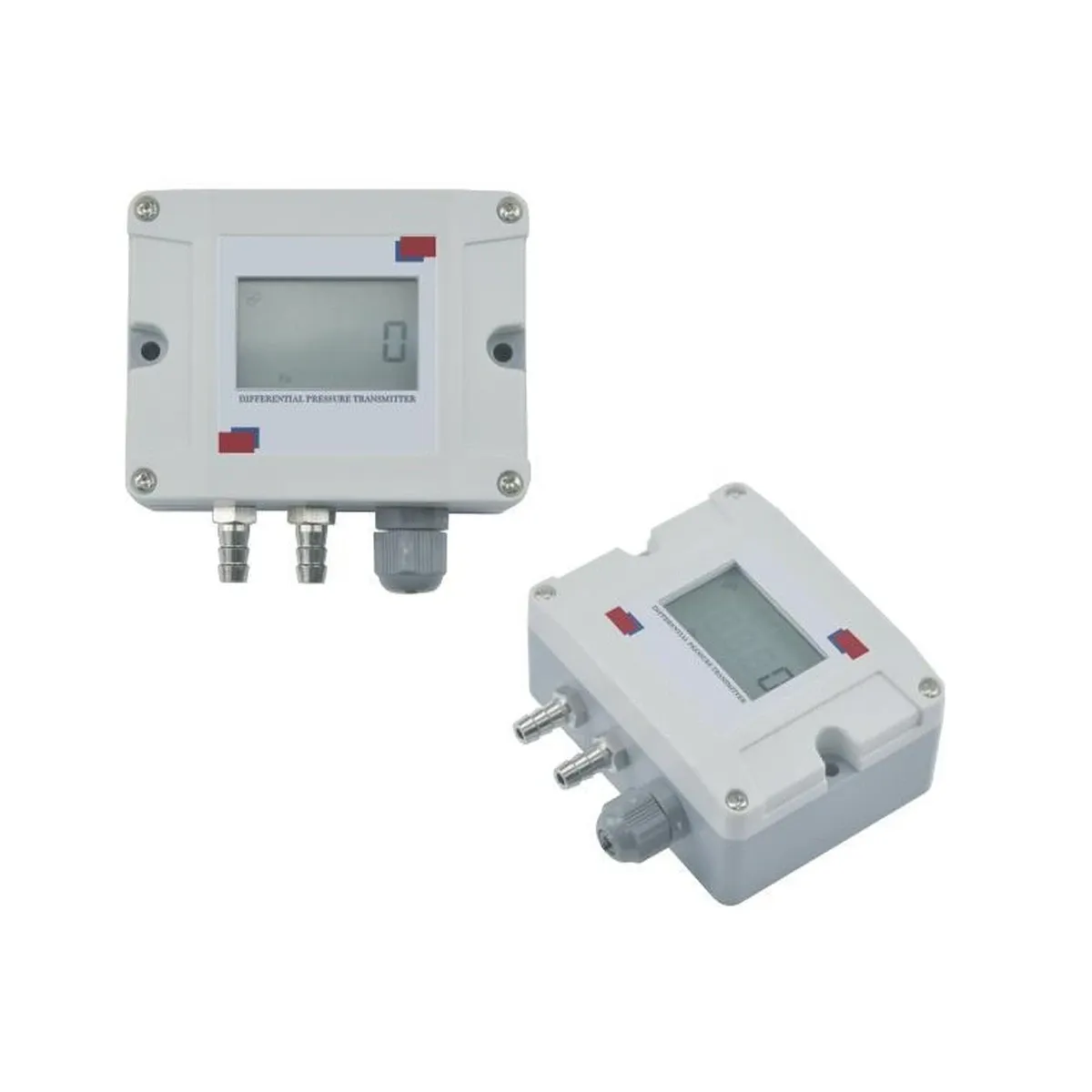

P410 Differential Pressure Transmitters
P410 Differential Pressure Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Output signal
0–10 VDC / 4–20 mA / RS-485
Accuracy
±1 %FS
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | -1000 ~ +1000 Pa / -500 ~ +500 Pa / -250 ~ +250 Pa |
| Measurement / Accuracy | ±1 %FS |
| Electrical / Output signal | 0-10Vdc / 4-20mA / RS-485 |
| Electrical / Supply voltage | DC 12..32 V |
| Environmental / Compatible media | Non-corrosive gas |
| Environmental / Ambient temperature | -10..60 °C |

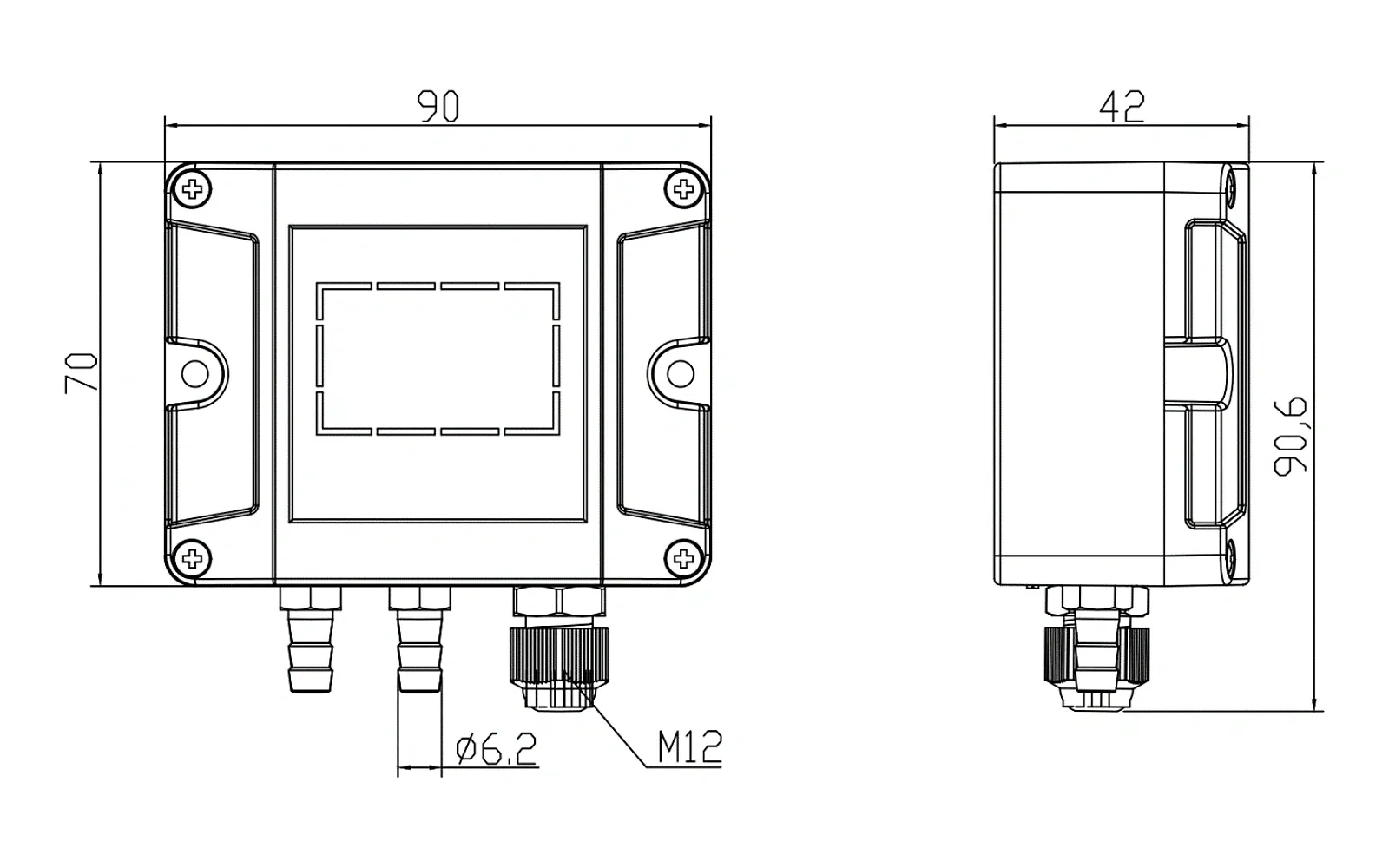

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Output signal | 0–10 VDC / 4–20 mA / RS-485 |
| Accuracy | ±1 %FS |
