Model: P120

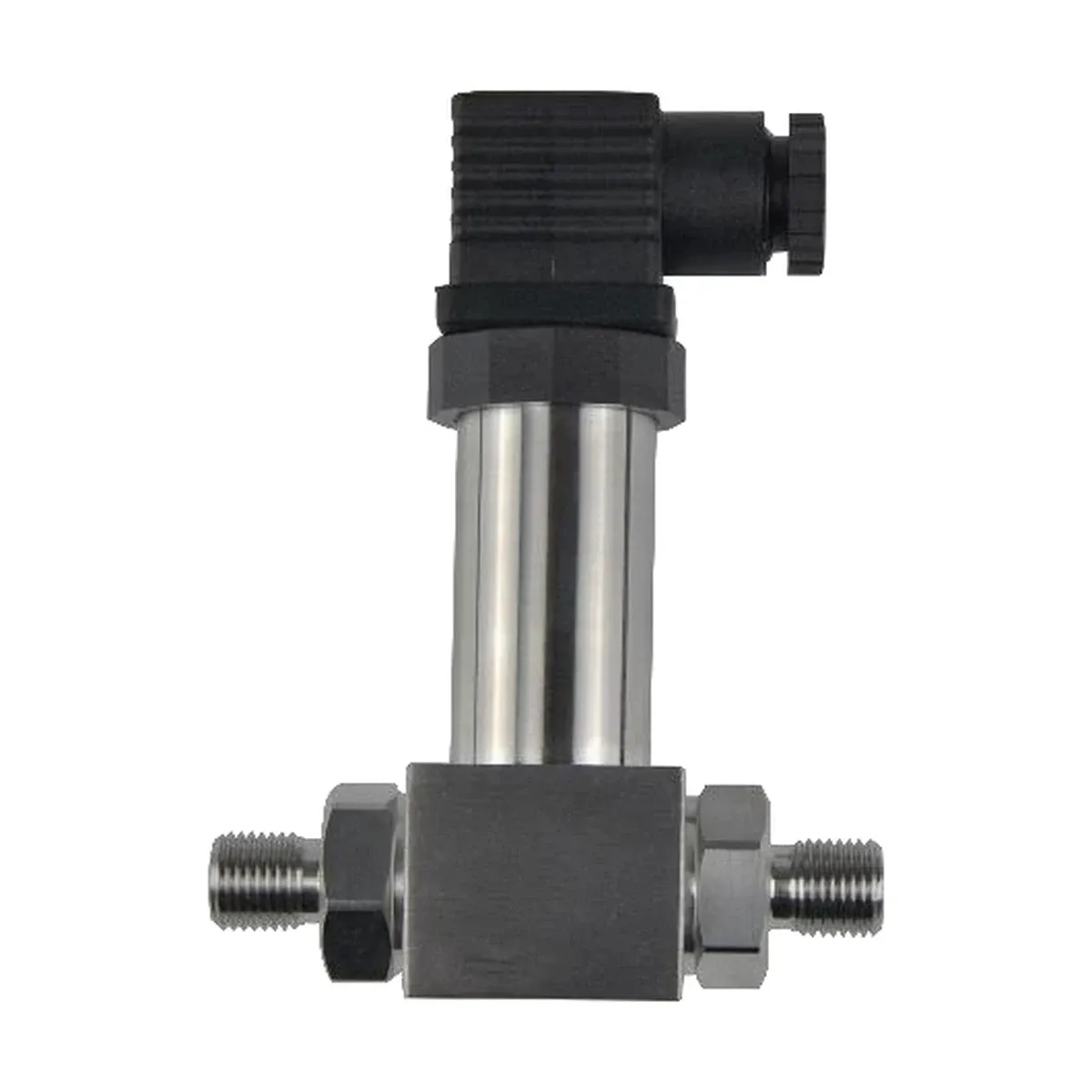

P120 Differential Pressure Transmitters
P120 Differential Pressure Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Output signal
0.5–4.5 V / 0–5 V / 0–10 V · +3 options
Accuracy
±1 %FS / ±0.5 %FS / ±0.25 %FS
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 0-10kPa / 600-1MPa / 2.5MPa |
| Measurement / Accuracy | ±1 %FS; ±0.5 %FS; ±0.25 %FS |
| Electrical / Output signal | 0.5-4.5V / 0-5V / 0-10V / 4-20mA / RS-485 |
| Electrical / Supply voltage | 5Vdc / 9-32Vdc / 12-32Vdc |
| Mechanical / Process connection | NPT1/4 / G1/4 / G1/2 / M20*1.5 / Custom |
| Mechanical / Electrical connection | M12*1 |
| Environmental / Ingress protection | IP65 / IP67 / IP68 |
| Environmental / Ambient temperature | -20..85 °C |

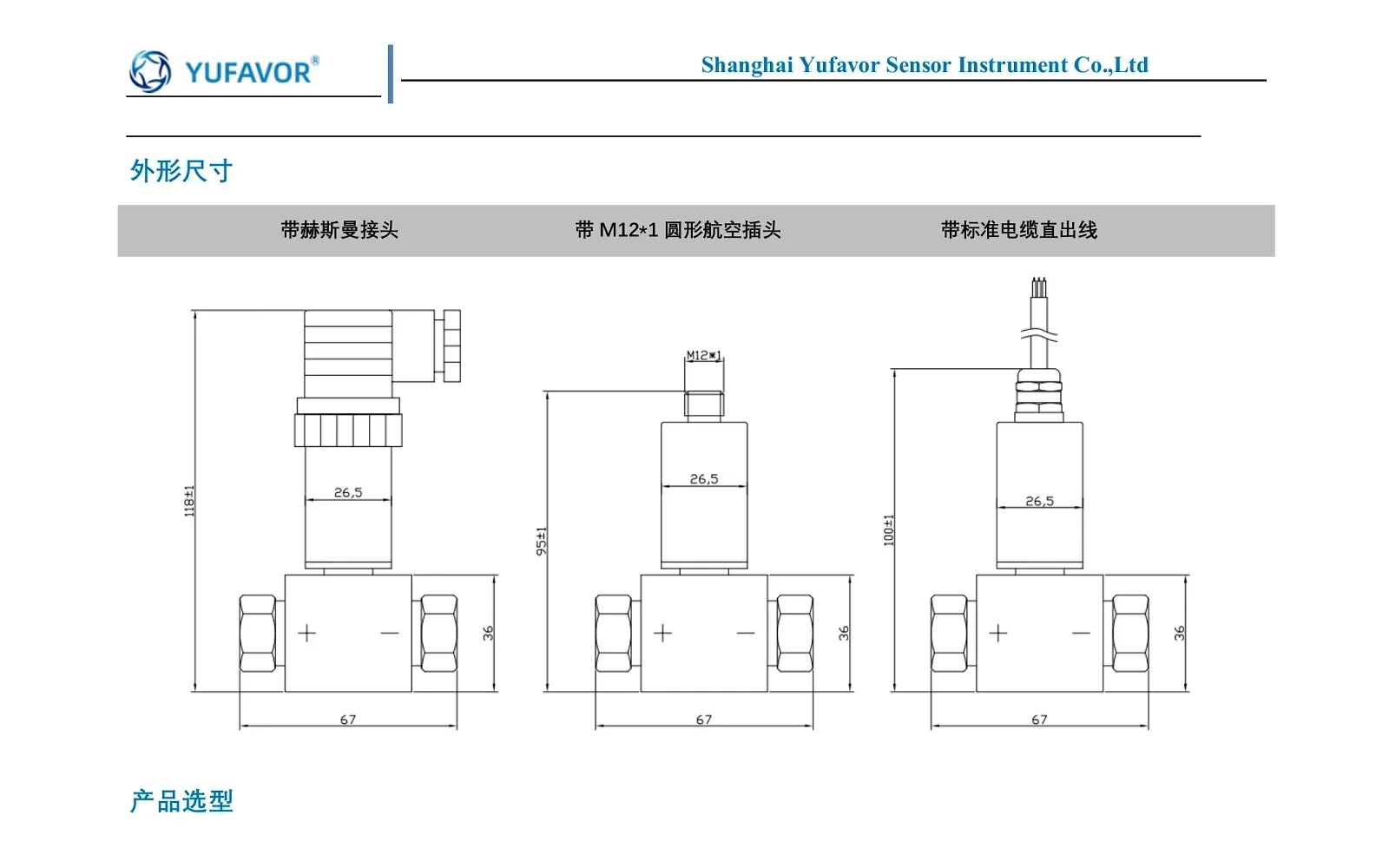

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Output signal | 0.5–4.5 V / 0–5 V / 0–10 V · +3 options |
| Accuracy | ±1 %FS / ±0.5 %FS / ±0.25 %FS |
