Model: P801

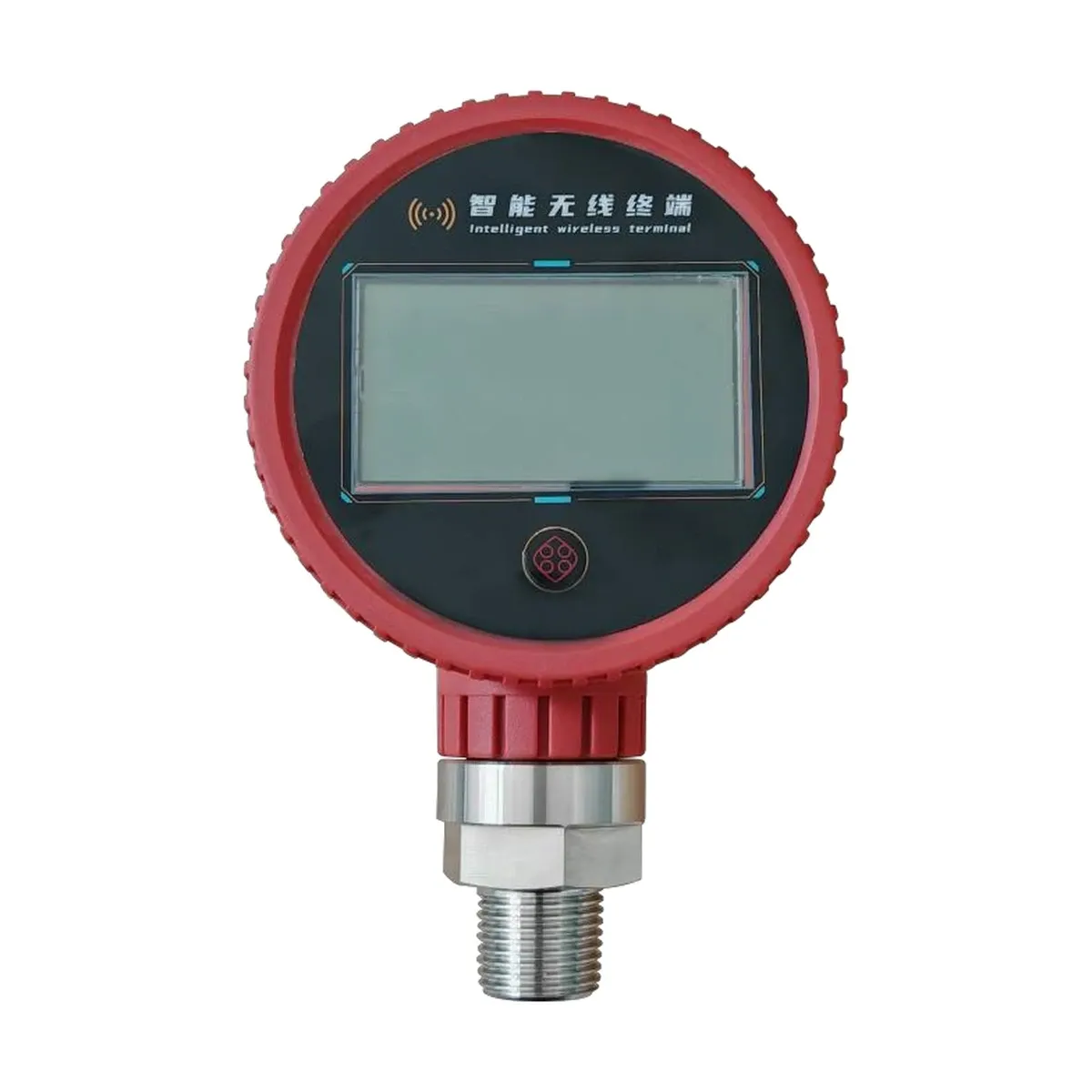

P801 Wireless Pressure Transmitters
P801 Wireless Pressure Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Accuracy
±0.5 %FS
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 0 ~ 1.6 MPa |
| Measurement / Accuracy | ±0.5% FS |
| Electrical / Supply voltage | 3.6V |
| Mechanical / Process connection | ZG1/2 |
| Environmental / Ingress protection | IP65 |
| Environmental / Ambient temperature | -10 °C ~ 70 °C |

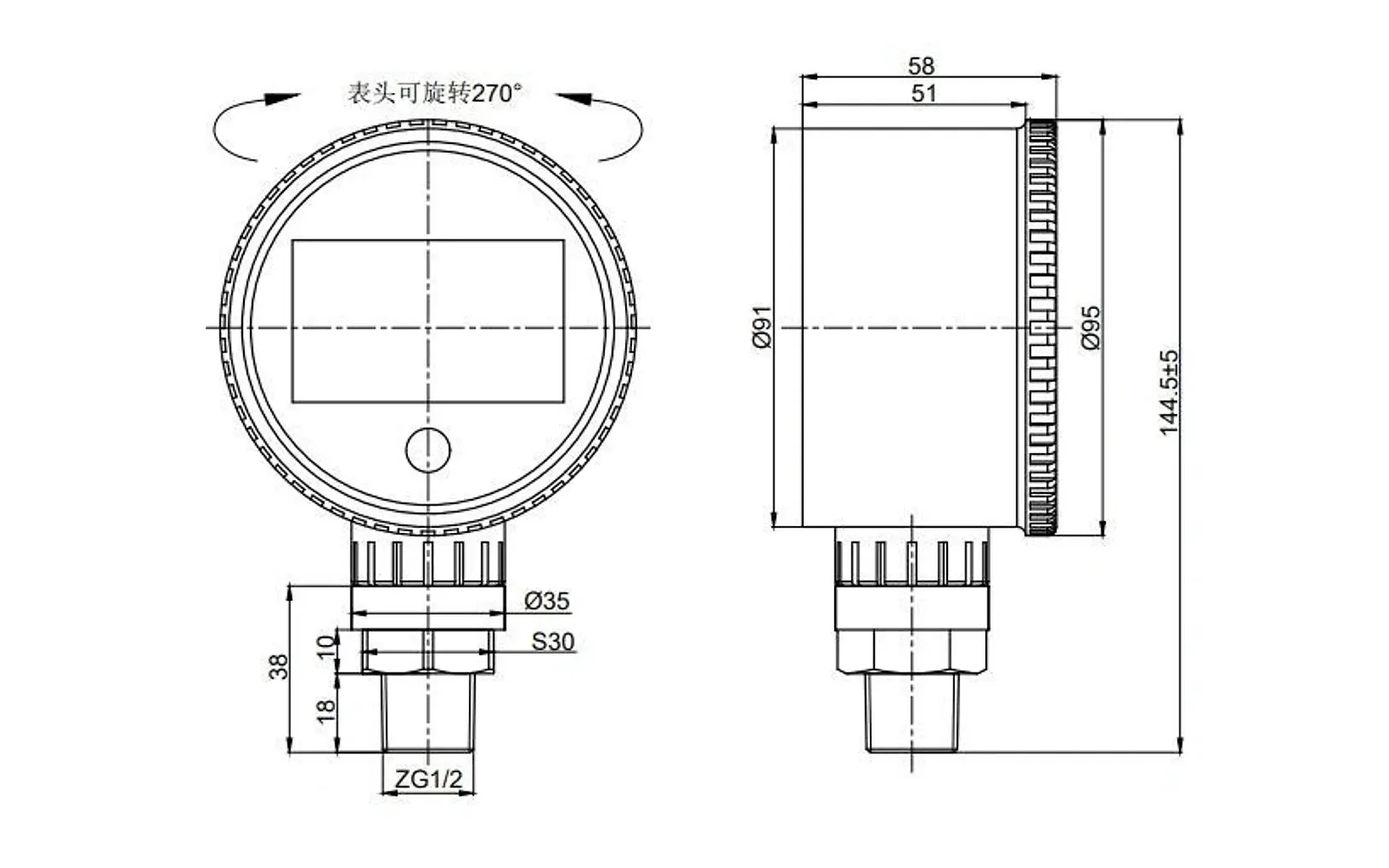

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Accuracy | ±0.5 %FS |
