Model: ZW
ZW Temperature and Pressure Transmitters
ZW Temperature and Pressure Transmitters for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Output signal
0.5–4.5 V / 0.33–2.97 V
Accuracy
1%
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 0 ~ 1 MPa |
| Measurement / Accuracy | 1% F.S. |
| Measurement / Overload limit | 3 x rated pressure |
| Electrical / Supply voltage | 3..5 Vdc |
| Mechanical / Process connection | G3/8, G1/4 |
| Environmental / Ingress protection | IP67 |
| Environmental / Compatible media | Non-corrosivegas |
| Environmental / Ambient temperature | -20..120 °C |

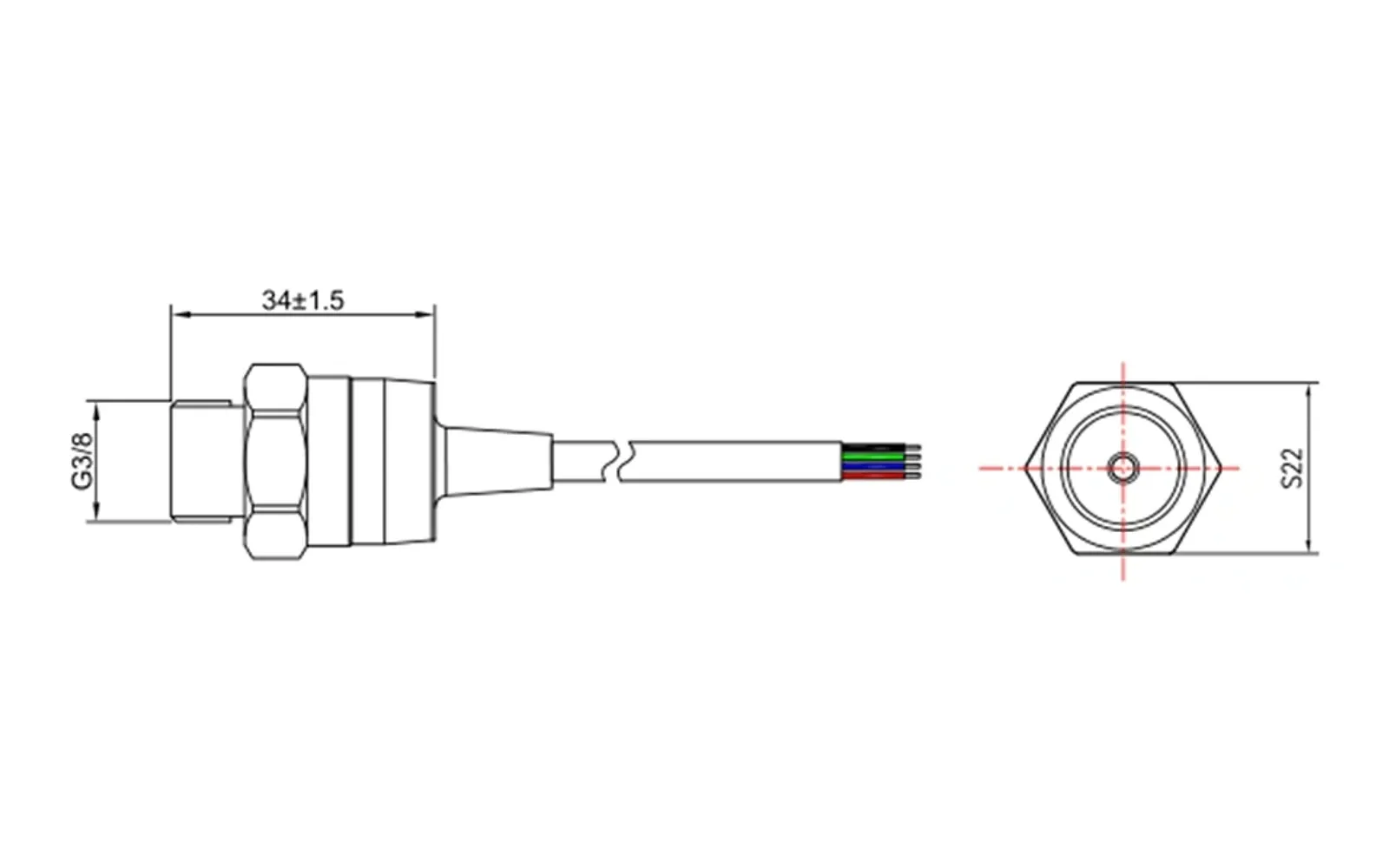

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Output signal | 0.5–4.5 V / 0.33–2.97 V |
| Accuracy | 1% |
