Model: TS12M
TS12M Digital Pressure Gauges
TS12M Digital Pressure Gauges for industrial measurement and control applications. Datasheet is archived for model selection, specification review, purchasing communication, and maintenance records.
Accuracy
±1 %FS / ±0.5 %FS
Supply voltage
5 VDC / 8–32 VDC / 12–32 VDC · +1 options
| Parameter | Value / Description |
|---|---|
| Measurement / Measurement range | 0-0.2MPa / 1MPa / 1.6MPa / 2MPa / 3MPa / 5MPa |
| Measurement / Accuracy | ±1 %FS; ±0.5 %FS |
| Measurement / Overload limit | 2 x rated pressure |
| Electrical / Output signal | 0.5..4.5 V / 0..5 V / 0..10 V / 1..5 V / 4..20 mA / PWM I2C |
| Electrical / Supply voltage | 5 VDC, 8..32 VDC 12..32 VDC 3.3 VDC |
| Environmental / Ingress protection | IP68 |
| Environmental / Ambient temperature | -20..125 °C |

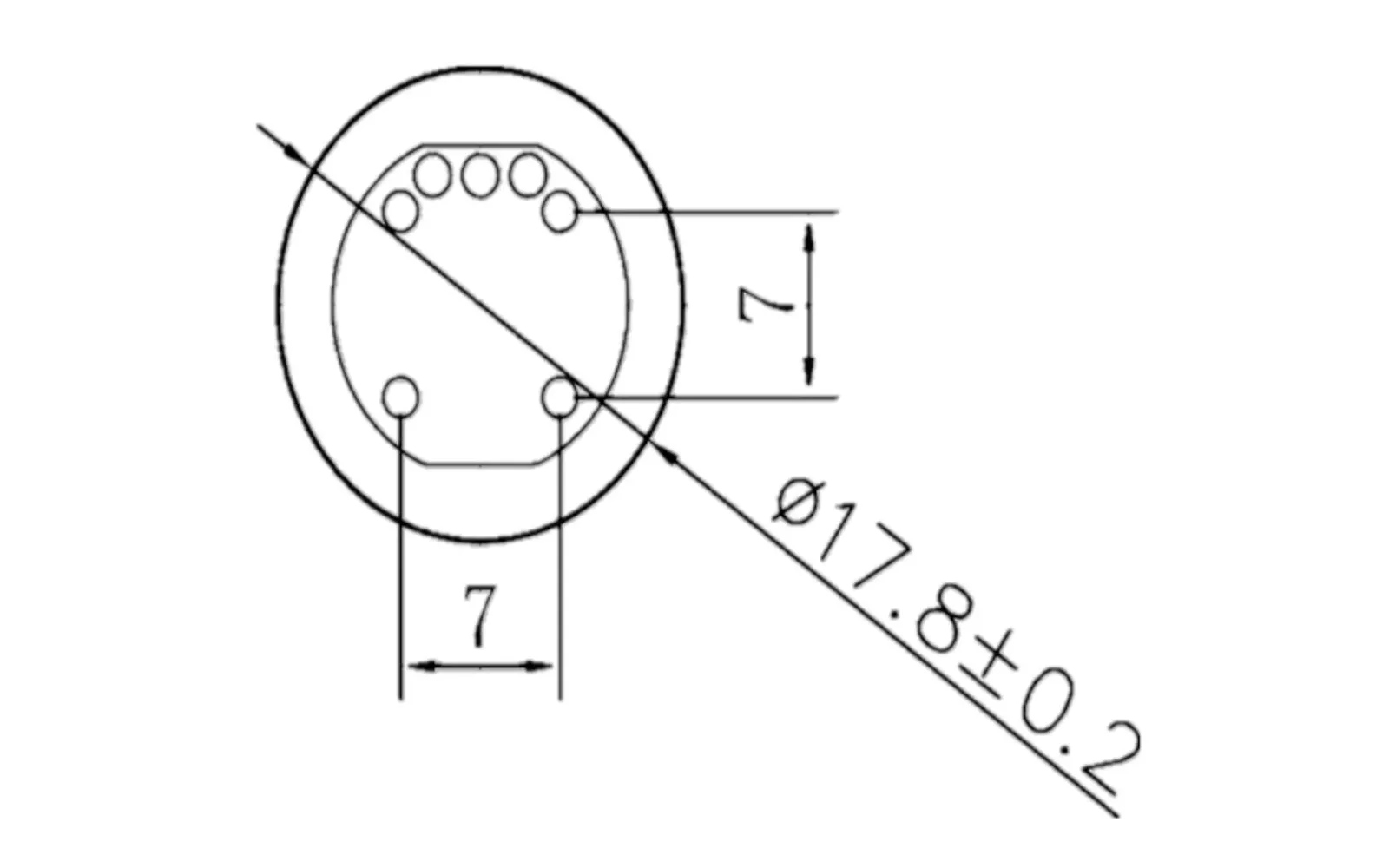

Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| Accuracy | ±1 %FS / ±0.5 %FS |
| Supply voltage | 5 VDC / 8–32 VDC / 12–32 VDC · +1 options |
