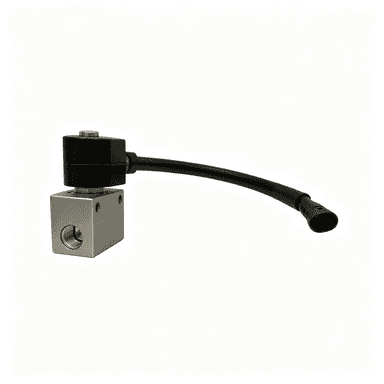

Model: YF-F2
F2
For cutting off gas pipelines
pressureRating
0...20 barg
connection
Cable side upward
material
Custom
| Parameter | Value / Description |
|---|---|
| pressureRating | 0...20 barg |
| connection | Cable side upward |
| material | Custom |
| mode | 2-position 2-way normally closed solenoid valve |
| media | Inert gas / Natural gas |
| size | 12 mm |
| Valve body type | 2-position 2-way normally closed solenoid valve |
| Pressure rating | 0...20 barg |
| Size | 12 mm |
| Connection | Cable side upward |
| Material | Custom |
| Mode | 2-position 2-way normally closed solenoid valve |
| Compatible media | Natural gas;Inert gas |
| Minimum operating pressure | 0 |
| Maximum operating pressure | 20 |
| Minimum orifice | 12 |
| External leakage | ≤0.25 |
| Internal leakage | ≤0.25 |
| Minimum ambient temperature | -40 |
| Maximum ambient temperature | 120 |
| Compatible media | Natural gas;Inert gas |
| Cycle life | 1000000 |
| Minimum operating voltage | 18 |
| Maximum operating voltage | 32 |
| Rated power | 14 |
| Coil resistance | 42±7%@20 C |
| Rated current | 0.57 |
| IP ingress protection | IP67 |
| Mounting orientation | Cable side upward |
Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| pressureRating | 0...20 barg |
| connection | Cable side upward |
| material | Custom |
| media | Inert gas / Natural gas |
| size | 12 mm |
