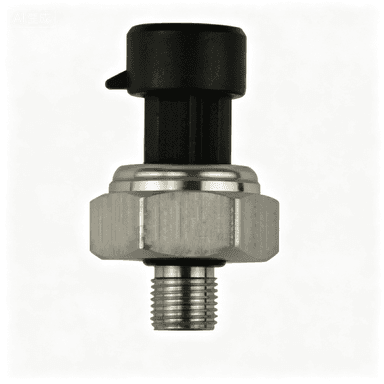

Model: YF-P13
P13
Cost-effective P13 pressure transmitter customized for coffee machines and beverage equipment, fixed 0~20bar measuring range with 0.5-4.5V ratiometric output, 5V power supply, 40bar overload and 60bar burst pressure. Built-in overvoltage, reverse voltage and short-circuit protection, aluminum housing, IP67 protection, operating temperature -40~125℃, equipped with XHB-3Y lock connector.
measurement
0...20 bar
output
0.5-4.5V
media
Air / Oil / Water
| Parameter | Value / Description |
|---|---|
| measurement | 0...20 bar |
| output | 0.5-4.5V |
| Process connection | G1/8;Other |
| media | Air / Oil / Water |
| Measurement range | 0...20 bar |
| Accuracy | 1% FS |
| Overload limit | 40 bar |
| Output signal | 0.5-4.5V |
| Supply voltage | 5±0.5Vdc |
| Process connection | G1/8;Other |
| Ingress protection | IP67 |
| Compatible media | Water;Air;Oil |
| Wetted materials | Stainless steel;Ceramic;FKM |
| Media temperature | -40...125 C |
| Ambient temperature | -40...125 C |
Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| measurement | 0...20 bar |
| output | 0.5-4.5V |
| media | Air / Oil / Water |
