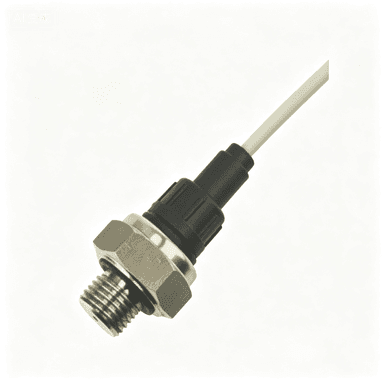

Model: YF-P12
P12
P12 cost-effective pressure transmitter specially designed for small appliances like water purifiers, coffee machines and beverage dispensers. It outputs 0.5-4.5V ratiometric signal with 5V power supply, supports 40bar overload and 60bar burst pressure, equipped with overvoltage, reverse voltage and short-circuit protection, IP67 stainless steel housing, working temperature -40~125℃.
measurement
0...25 bar
output
0.5-4.5V
media
Air / Oil / Water
| Parameter | Value / Description |
|---|---|
| measurement | 0...25 bar |
| output | 0.5-4.5V |
| Process connection | G1/4;NPT1/4;Other |
| media | Air / Oil / Water |
| Measurement range | 0...25 bar |
| Accuracy | 1% FS |
| Overload limit | 50 bar |
| Output signal | 0.5-4.5V |
| Supply voltage | 3-5V;8-32V;5V±10% |
| Process connection | G1/4;NPT1/4;Other |
| Ingress protection | IP67 |
| Compatible media | Water;Air;Oil |
| Wetted materials | Stainless steel;Ceramic;FKM |
| Media temperature | -40...125 C |
| Ambient temperature | -40...125 C |
Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| measurement | 0...25 bar |
| output | 0.5-4.5V |
| media | Air / Oil / Water |
