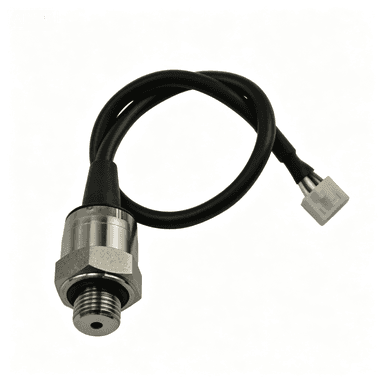

Model: YF-P11
P11
P11 compact pressure transmitter with good medium compatibility and long-term stability, only IIC digital output, powered by 3-5VDC, ultra-low current consumption ≤1mA, wide temperature range -40~125℃, IP67 protection, excellent shock and vibration resistance for gas and liquid pressure measurement compatible with stainless steel.
measurement
0...50 bar
output
0.5-4.5V
media
Air / Oil / Water
| Parameter | Value / Description |
|---|---|
| measurement | 0...50 bar |
| output | 0.5-4.5V |
| Process connection | G1/4;NPT1/8;NPT1/4;Other |
| media | Air / Oil / Water |
| Measurement range | 0...50 bar |
| Accuracy | 1% FS |
| Overload limit | 100 bar |
| Output signal | 0.5-4.5V |
| Supply voltage | 3-5V;8-32V;5V±10% |
| Process connection | G1/4;NPT1/8;NPT1/4;Other |
| Ingress protection | IP67 |
| Compatible media | Water;Air;Oil |
| Wetted materials | Stainless steel;Ceramic;FKM |
| Media temperature | -40...125 C |
| Ambient temperature | -40...125 C |
Dimensions & Installation Data
| Parameter | Value / Description |
|---|---|
| measurement | 0...50 bar |
| output | 0.5-4.5V |
| media | Air / Oil / Water |
